GXP2170 بـ12 مفتاح خط وشاشة LCD ملونة 4.3 بوصة و48 مفتاح اتصال سريع/BLF رقمي، يوفّر للمستخدمين أسرع سرعات اتصال بفضل منفذَي Gigabit بدعم PoE.
تحديد موديل GXP2170 وطلبه للمشروع
هذه الصفحة تخص Grandstream GXP2170 – هاتف IP متطور، 12 خطاً، 6 حسابات SIP، مؤتمرات صوتية خماسية، USB، Bluetooth، Gigabit، يدعم PoE ووحدة GXP2200EXT من Grandstream، ورمز الطلب المحدد هو GXP2170. عند طلب عرض السعر، استخدم هذا الرمز كاملاً لتفادي الخلط مع المقاسات أو الألوان أو التوصيلات أو الإصدارات القريبة ضمن فئة حلول هواتف IP.
معلومات تساعدنا في إعداد عرض أدق
- الكمية المطلوبة من الموديل GXP2170
- موقع المشروع وموعد التوريد المتوقع
- الحاجة إلى التركيب أو البرمجة أو التكامل مع نظام قائم
- الملحقات أو التراخيص أو الحوامل والكابلات المطلوبة
تفاصيل المنتج والمواصفات
Grandstream GXP2170 High-End IP Phone Specifications:
Manufacturer:
Grandstream
Model:
GXP2170
Screen:
4.3’’ TFT color LCD
Lines:
12-Lines
SIP Accounts:
6
Wi-Fi:
N/A
Bluetooth:
Yes, integrated
Network Interfaces:
Dual switched auto-sensing 10/100/1000 Mbps
Auxiliary Ports:
RJ9 headset jack, USB, extension module port
Conference Call:
5-way conferencing
Power Adapter:
Input: 100-240VAC; Output: +12VDC, 1A
PoE Support:
Yes, (802.3af)

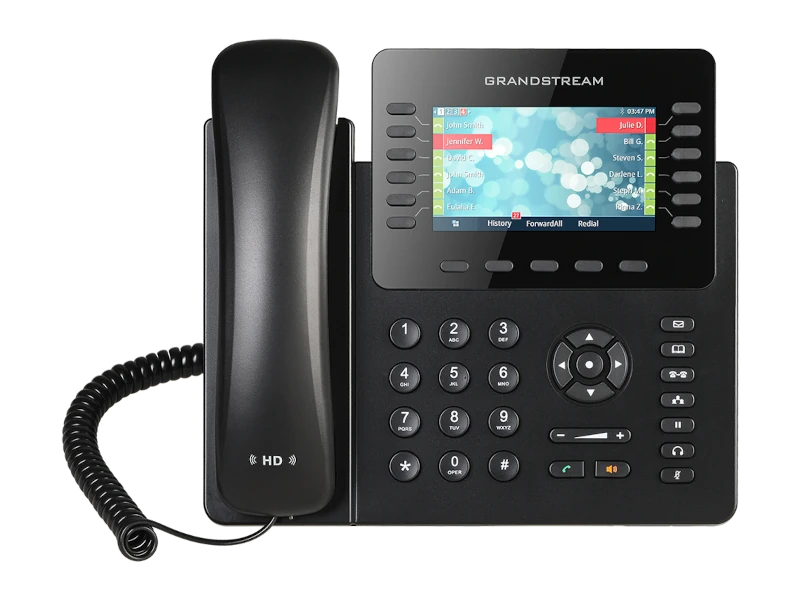

The GXP2170 is a powerful High-End IP phone that is ideal for busy users who handle high call volumes. Receptionists, administrators, sales staff and other call-intensive rolls can enjoy efficiency by utilizing the GXP2170’s 12 line keys, 4.3 inch color display LCD and 48 digital, on-screen speed dial/BLF keys. Provide users with the fastest possible connection speeds thanks to the device’s dual Gigabit, PoE network ports. Maximized call control, expandable speed dial/BLF capabilities and a sleek design makes this phone the ultimate high-volume experience.
As all Grandstream IP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Grandstream GXP2170 High-End IP Phone Product Features:
12 dual-color line keys (6 SIP accounts), 5 XML programmable context-sensitive soft keys
Dual-switched auto-sensing 10/100/1000mbps network ports
HD audio to maximize audio quality and clarity, full-duplex speakerphone
Built-in USB ports for importing/exporting data
Supports EHS compatible Plantronics’s headsets
5-way audio conferencing for easy conference calls
Built-in PoE to power the device and give it a network connection
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning using TR-069 or AES encrypted XML configuration file
Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring

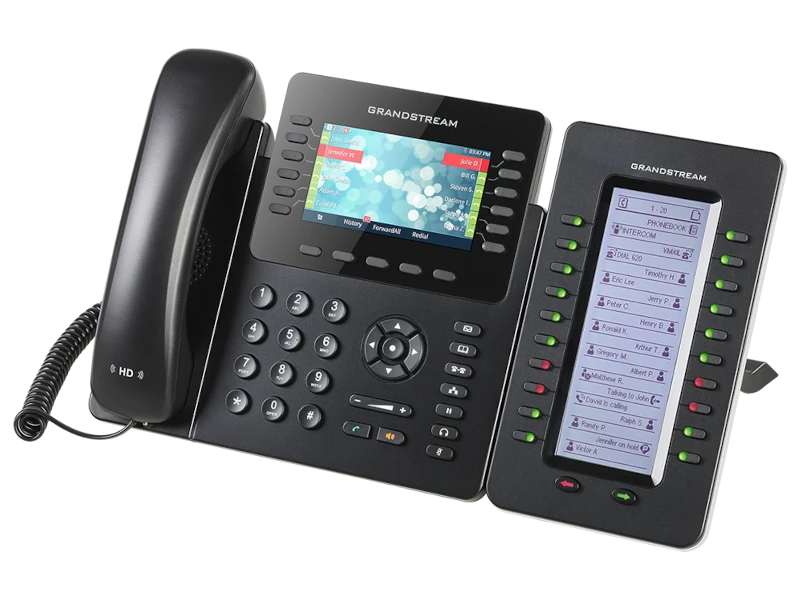

48 digitally programmable & customizable BLF/fastdial keys, and supports up to 4 cascaded GXP2200EXT Modules
Use with Grandstream’s UCM series IP PBX appliance for Zero-Config provisioning, 1-touch call recording & more
Grandstream GXP2170 High-End IP Phone Package Contents:
1× GXP2170 phone
1× Handset
1× Phone cord
1× Phone stand
1× 12V power supply
1× Ethernet cable
1× Wall Mount
1× Quick Installation Guide
1× GPL License
Grandstream GXP2170 High-End IP Phone Resources:
Grandstream GXP2170 DataSheet:
Download PDF
Grandstream GXP2170 Quick Installation Guide:
Download PDF
Display
2.3”, Graphical LCD
Ethernet Ports
10/100M Ethernet Switch, Two-port
Compatibility
W56P, W60P, Yealink W60B
Battary
Li-ion, Rechargable, Up to 30-hour talk time
Connectivity
Bluetooth 4.2, Dual band 2.4G/5G Wi-Fi
USB Ports
2, USB 2.0 Type-A
