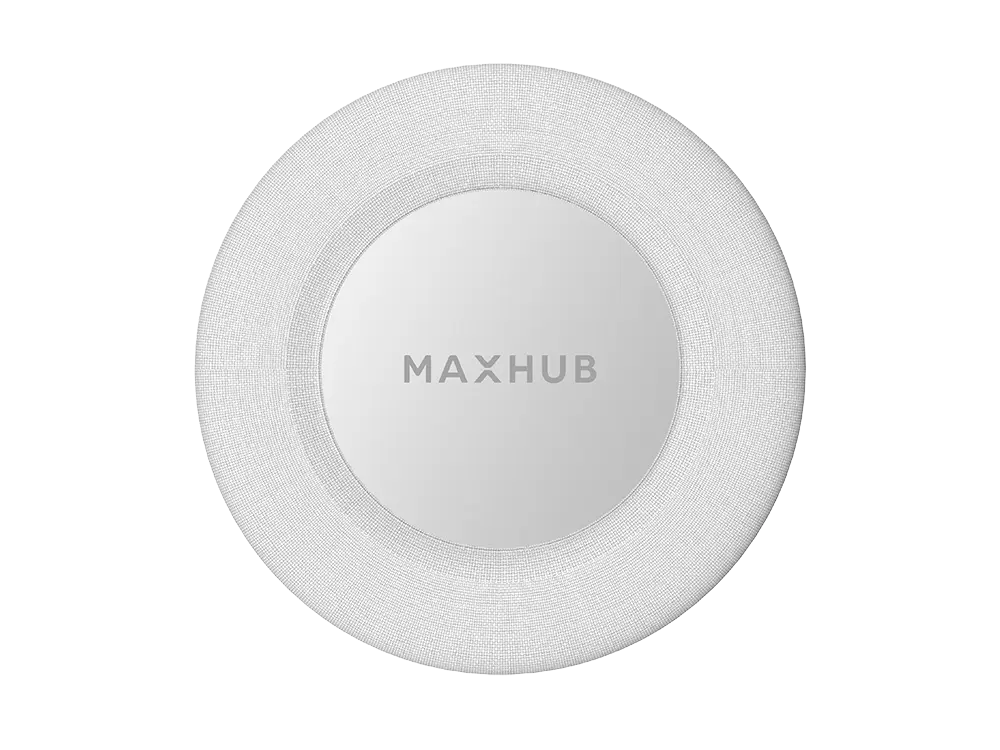

MAXHUB CM30 – ميكروفون سقفي لنظام Capture، مصفوفة 8 ميكروفونات، نطاق التقاط 8م، لنظام MAXHUB Capture V3

MAXHUB CM30 Omnidirectional Microphone Specifications: Manufacturer: MAXHUB Model: CM30 Quantity: 8-Array microphone Voice Pickup Range: Pickup radius≥8m Type: Omnidirectional microphone Frequency Range: 20Hz-20kHz Sound Pressure Level: ≥ 130 dB SPL (10%THD@1Khz) I/O Port: DMIC ×2 USB Type-C (for upgrade and debug) ×1 Reset ×1 Power Supply: DC-48V/ 100mA Dimension (ØD × T): 138.5 × 27.3 mm Net Weight: 0.45 Kg The CM30 Ceiling Microphone is specifically designed to enhance audio capture in educational environments, ensuring that every word spoken in the classroom is heard clearly. Perfect for modern classrooms, lecture theatres, and educational facilities, the CM30 offers superior sound quality and intelligent audio processing to create an optimal learning experience. MAXHUB CM30 Capture System Ceiling Microphone Features: 8-Microphone Array Utilizes an 8-element circular array design, integrated with ANS, AEC, and AGC algorithms for crystal-clear audio capture. Digital Audio Transmission Supports digital audio transmission technology to eliminate line interference, ensuring high-fidelity sound through digital signal transfer. Effortless Cascading Easily connect multiple CM30 microphones via Cat5e cables for comprehensive coverage in larger classrooms or lecture halls. Convenient Upgrading Firmware updates are simple via the USB Type-C port or Ethernet connection, ensuring the microphone is always up-to-date with the latest features. MAXHUB CM30 Omnidirectional Microphone Resources: MAXHUB CM30 Datasheet: View PDF
