W70 فيديو بار بكاميرا رباعية وسمّاعات وميكروفونات مدمجة، يوفّر تقنيات كاميرا وصوت متطورة تجلب قدرات المخرج بالذكاء الاصطناعي للغرف المتوسطة والكبيرة.
تحديد موديل XBar W70 Kit وطلبه للمشروع
هذه الصفحة تخص MAXHUB XBar W70 Kit – فيديو بار بنظام Windows، كاميرا رباعية 200MP، سمّاعتان 20W، مصفوفة 16 ميكروفوناً، Windows 11 من MAXHUB، ورمز الطلب المحدد هو XBar W70 Kit. عند طلب عرض السعر، استخدم هذا الرمز كاملاً لتفادي الخلط مع المقاسات أو الألوان أو التوصيلات أو الإصدارات القريبة ضمن فئة كاميرات USB.
معلومات تساعدنا في إعداد عرض أدق
- الكمية المطلوبة من الموديل XBar W70 Kit
- موقع المشروع وموعد التوريد المتوقع
- الحاجة إلى التركيب أو البرمجة أو التكامل مع نظام قائم
- الملحقات أو التراخيص أو الحوامل والكابلات المطلوبة
تفاصيل المنتج والمواصفات
MAXHUB
Xbar W70 Kit
For Microsoft Teams Rooms Specifications:
Manufacturer:
MAXHUB
Model:
XBar W70 Kit

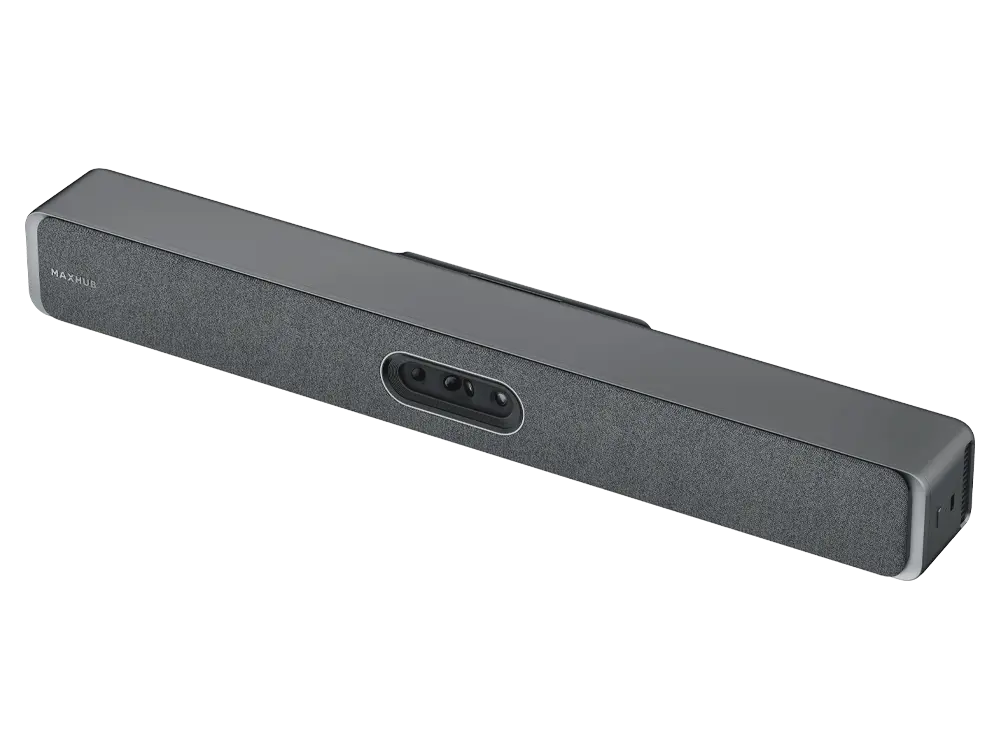

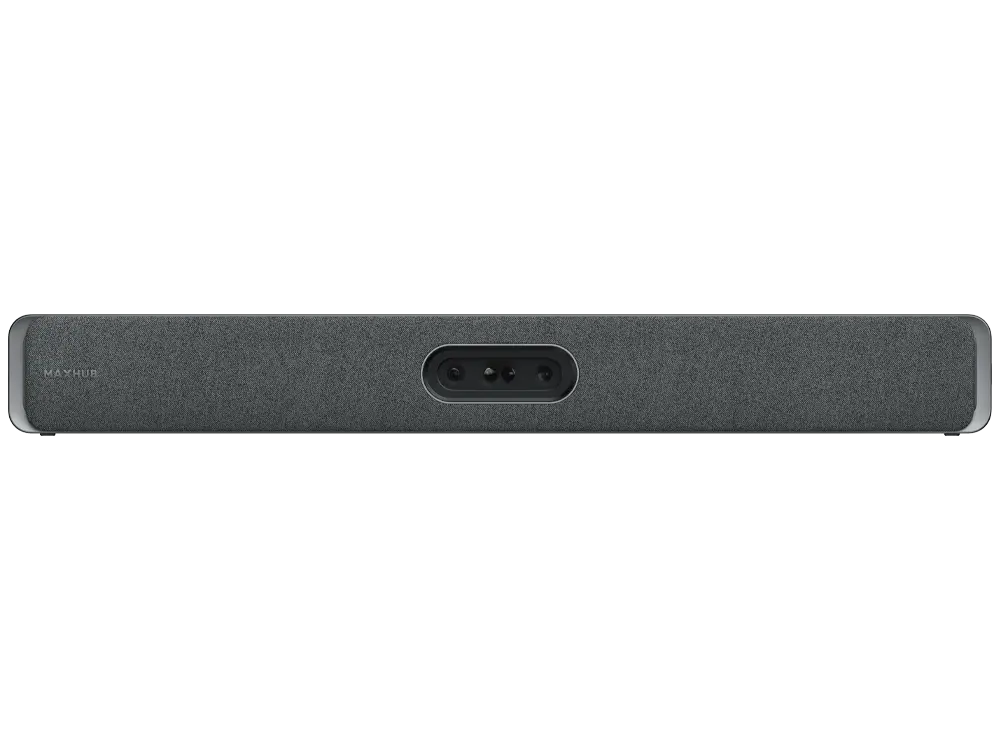

XBar W70
Camera:
4× 50MP, 1/1.55 inch, F/2.4
Output Resolution:
Up to 4K
Zoom:
8x Hybrid Zoom
Field of View:
130° (D), 125° (H), 50° (V)
Microphones
: 16-mic Array, 10m Pickup Range
Speaker:
2.0 channel, 20W + 20W
Processor:
Intel® CoreTM i5-1240P
Memory/Storage:
16GB/256GB
OS:
Windows 11 loT Enterprise SAC
Dimension L×W×H:
840.6 × 117.6 × 104 mm

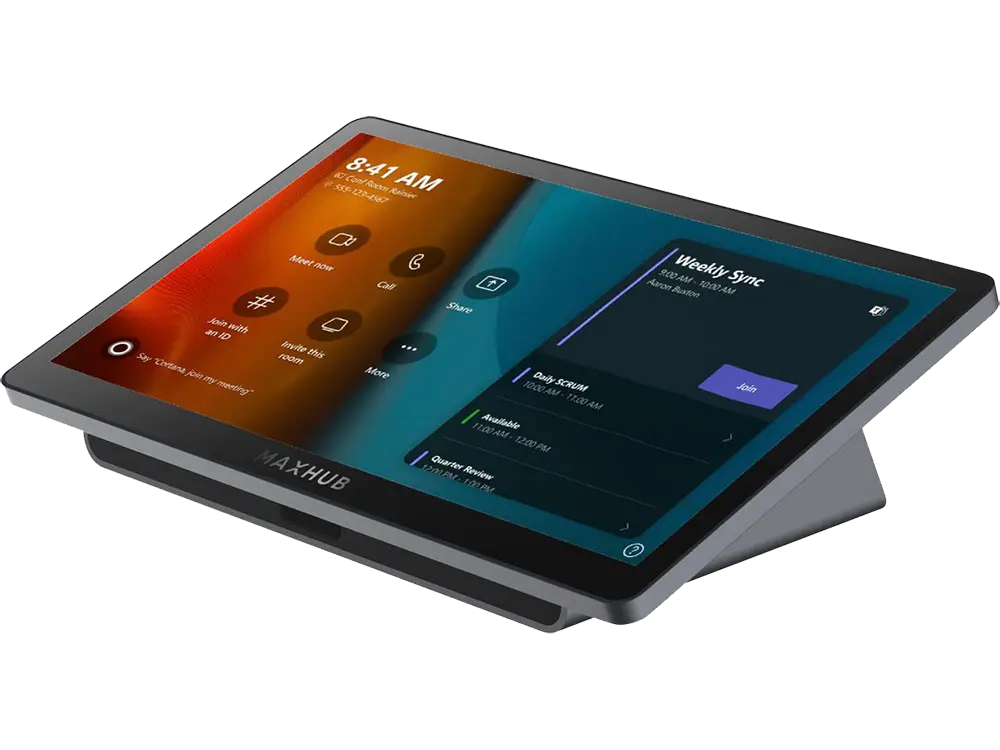

TCP31T
Size:
11.6 inch
Resolution:
1920 × 1080
Refresh Rate:
60 Hz
Backlight Unit:
ELED
Life Time:
≥ 20000 hours
Touch System:
Capacitive touch
Surface Treatment:
Anti-fingerprint, Anti-glare
Motion Sensor:
PIR sensor for automatic wake-up
Operating System:
Android 13, MDEP Supported
Dimension L×W×H:
278 × 164 × 82 mm
The MAXHUB XBar
W70
delivers the unmatched video and audio experience customers have come to expect. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations–further removing the barriers to usage and deployment of video in medium to large-sized rooms. The
W70
is a quad-camera bar with integrated speakers and microphones. It offers sophisticated camera and audio technologies that bring AI director capabilities to medium to large-sized rooms.
MAXHUB
Xbar W70 Kit
All-in-one VideoBar Key Features:
200MP Camera System
UHD camera system redefines image
clarity and spatial adaptability
Quad Sight Lens
Ultra-wide 125° HFOV Dual
telephoto lens for close-up tracking
AI-Powered Technology
Auto Framing, Speaker Tracking,
Smart Gathering, Intelligent Focus
AI Noise Reduction
Noise Reduction, Echo Cancellation, Anti-Reverberation, AGC Algorithm
Extended Capability
Can connect to both third-party device and exclusive MAXHUB device
Studio-Grade Speakers
Dual 20W Speakers, Stereo Sound,
Full Frequency, Quad Passive Radiator
BYOD Mode
Connect to your PC with a single
USB cable for BYOD meeting
Cloud Management
Remotely monitor device status
through cloud via (MAXHUB Pivot)
MAXHUB
Xbar W70 Kit
All-in-one VideoBar Resources:
MAXHUB XBar W70 Datasheet:
View PDF
MAXHUB XBar_W0 Quick Start Guide:
View PDF
