Q-SYS QIO-RMK – الشبكات ومداخل ومخارج الصوت والصورة

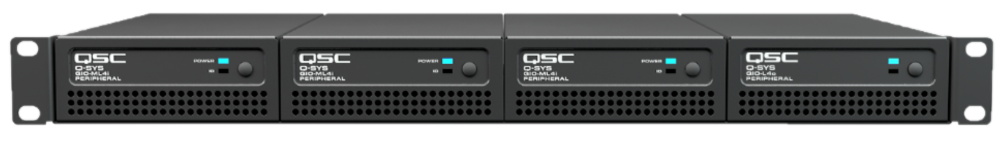

The Q-SYS QIO-RMK is a mechanical rack-mount accessory—not an audio or control processor. Identified in the official hardware manual as FG-901528-00, the 1RU tray installs compatible compact QIO endpoints in a standard 19-inch rack. It accommodates up to four quarter-rack-width QIO devices, up to two half-rack-width QIO-FLEX4A devices, or a supported mixed arrangement that fits the tray. The current QIO hardware manual covers the quarter-rack QIO-ML4i, QIO-L4o, QIO-ML2x2, QIO-AES8x8, QIO-TEL2, QIO-GP8x8, QIO-S4, QIO-IR1x4 and QIO-LVR4, plus the half-rack QIO-FLEX4A. Retaining clips can be installed at the documented short 5.5-inch or long 8.5-inch positions to suit the endpoint depth. The official kit contents are one rack tray, three optional blanking plates, fourteen M3 × 6 mm flat-head screws and four retaining clips. Blanking plates can close unused positions to support rack airflow. The kit carries no audio specifications because its function is solely physical mounting.
