Q-SYS SPA-Qf 60x4 هو منتج من فئة مضخمات الصوت ضمن كتالوج حلول الصوت والصورة والتحكم. يتوفر للمشاريع في السعودية بنظام طلب عرض السعر، مع الاستشارة بشأن التوافق والتكامل قبل التوريد.
تفاصيل المنتج والمواصفات

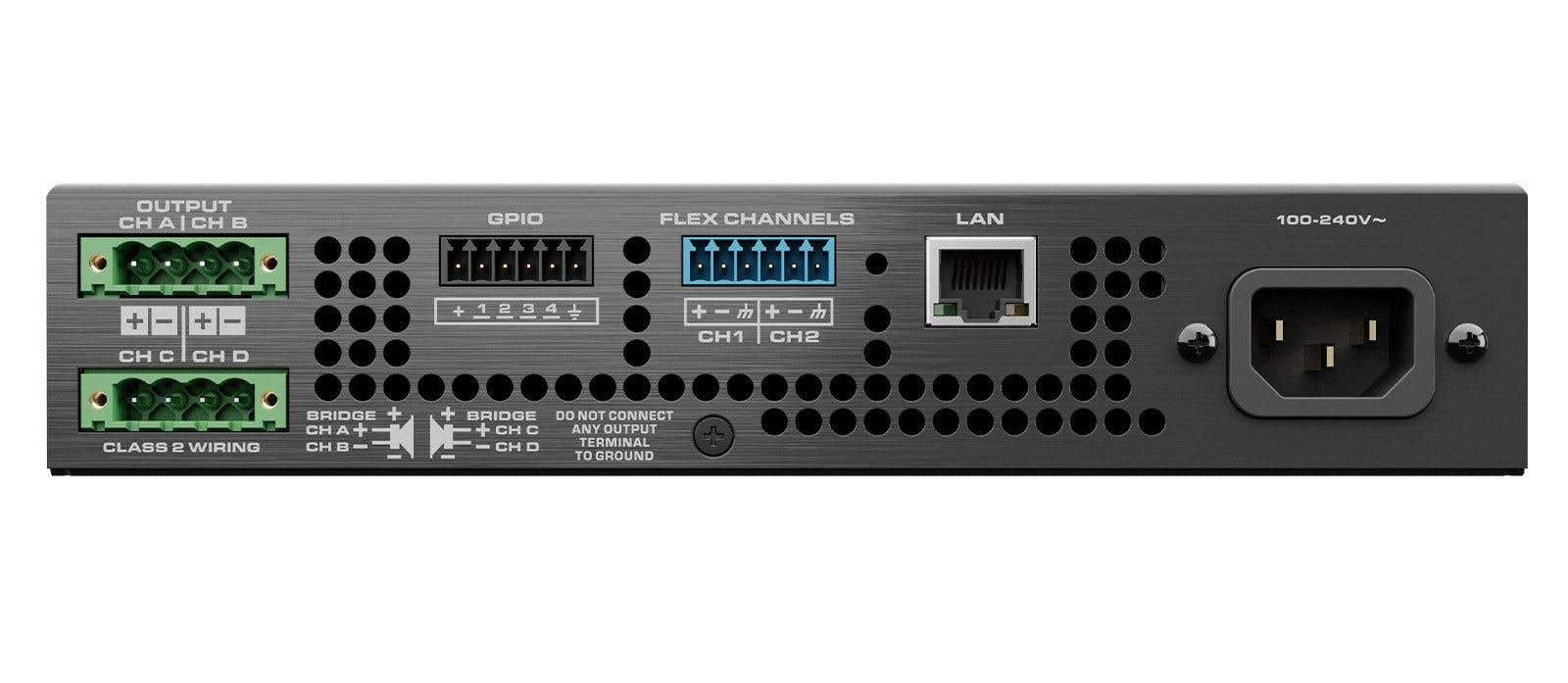

The Q-SYS SPA-Qf 60x4 is a four-channel network amplifier for the Q-SYS Platform. Each channel delivers 60 W into 4 Ω or 8 Ω loads; bridged channel pairs provide 120 W into 8 Ω or for 70 V and 100 V distributed systems. Low-impedance operation supports 2–16 Ω. Two software-defined Flex channels can operate as balanced or unbalanced mic/line inputs with optional 48 V phantom power, or as line outputs. Four bidirectional GPIO pins support control integration. A 1 Gigabit RJ45 LAN port connects the amplifier to the Q-LAN network, while loudspeaker outputs, Flex I/O and GPIO use the documented Euroblock connections. The amplifier requires a Q-SYS Core processor and Q-SYS Designer Software 9.8 or later for configuration and operation. Protection covers short circuit, open circuit, overcurrent, overvoltage, thermal, RF and DC faults, with active inrush limiting and muting. The convection-cooled half-rack 1RU enclosure can be installed singly or in pairs in a 19-inch rack, in a half rack, or surface-mounted under a table, on a wall or behind a display using the supplied hardware. AC input is 100–240 V, 50/60 Hz. Dimensions are 44 × 221 × 286 mm. The package includes the regional power cord, rack ears, joining plates, spacers, mounting fasteners and the required Euroblock plugs.
Product type
Four-channel Q-SYS network amplifier
Output power
4 × 60 W at 4 Ω or 8 Ω
Bridged output
120 W at 8 Ω, 70 V RMS or 100 V RMS
Lo-Z operating range
2–16 Ω
Flex I/O
2 software-defined mic/line inputs with optional 48 V phantom power, or line outputs
GPIO
4 bidirectional pins; 3.3 V / 100 mA power pin and ground
Network
1 × RJ45, 1 Gigabit Q-LAN
Audio connections
2 × 4-position Euroblock loudspeaker outputs; 2 × 3-position Euroblock Flex I/O
GPIO connection
1 × 6-position Euroblock
Platform requirements
Q-SYS Core processor; Q-SYS Designer Software 9.8 or later
AC power
100–240 V, 50/60 Hz
Protection
Short/open circuit, overcurrent, overvoltage, thermal, RF and DC fault protection
Mounting
Half-rack 1RU; 19-inch rack, tandem or surface mounting with included hardware
Dimensions
44 × 221 × 286 mm (H × W × D)
Included accessories
Power cord, rack ears, joining plates, spacers, mounting fasteners and Euroblock plugs
