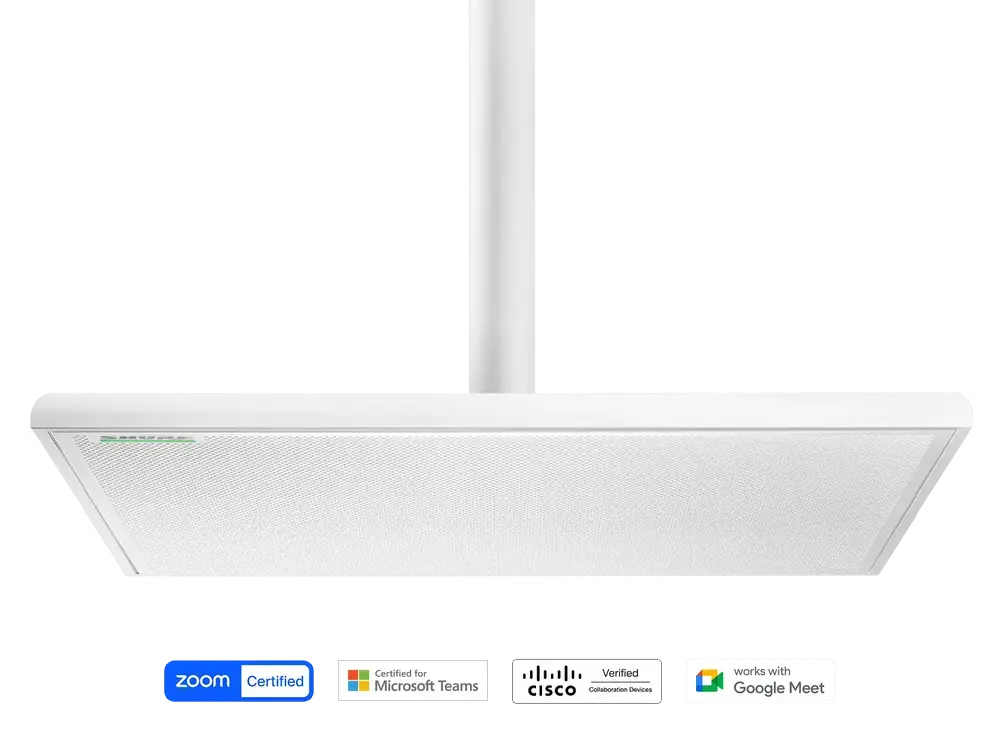

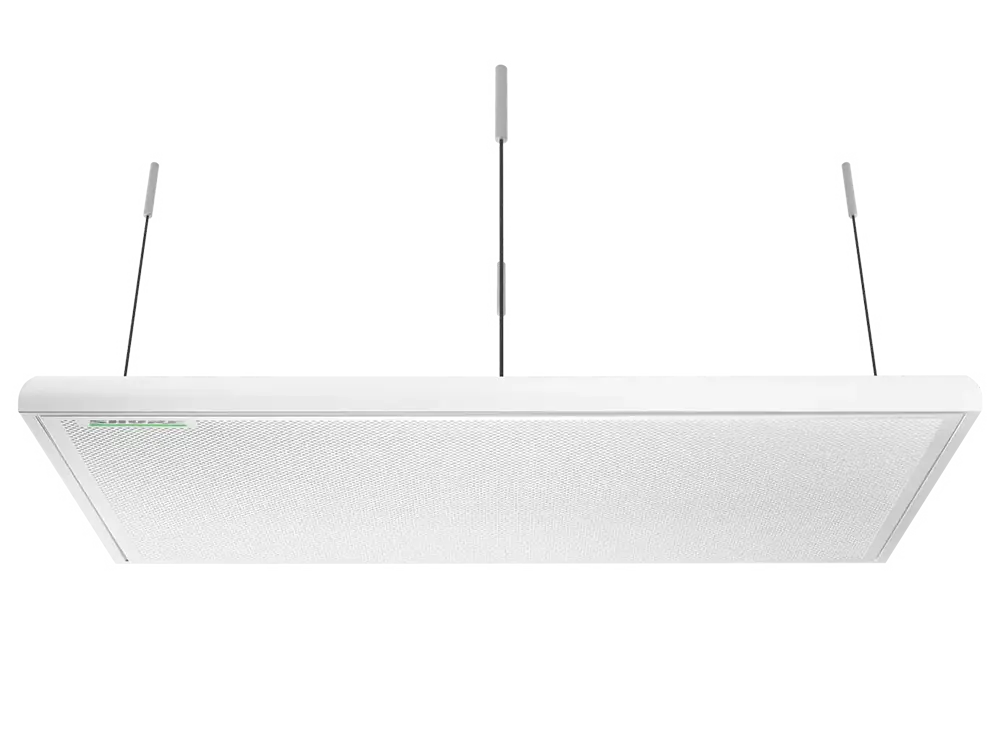

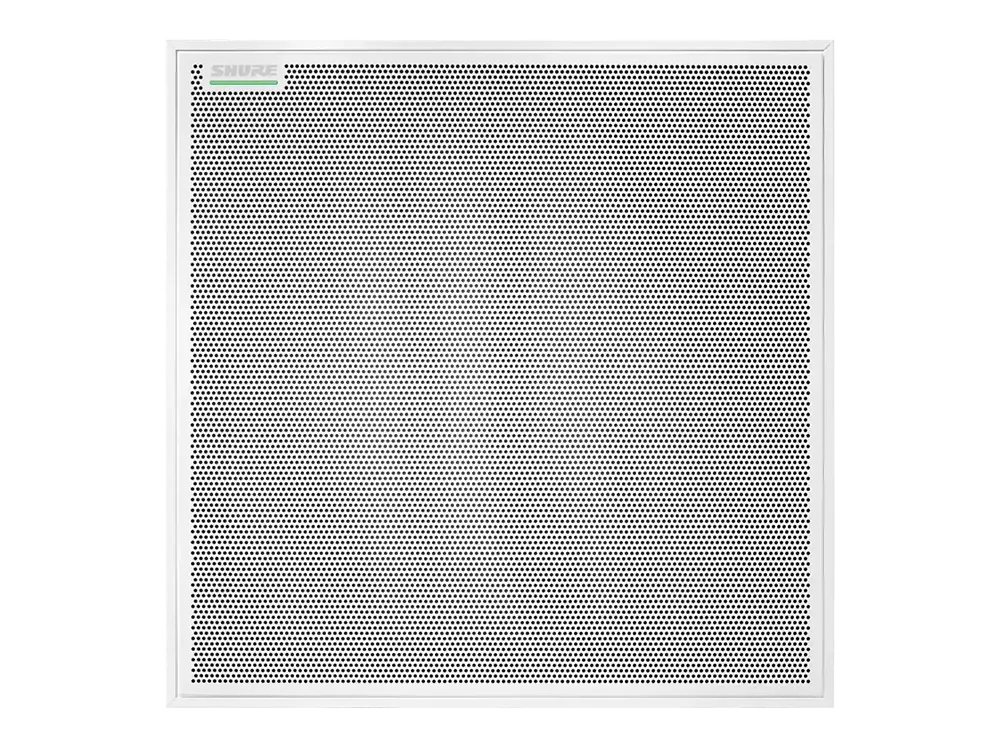

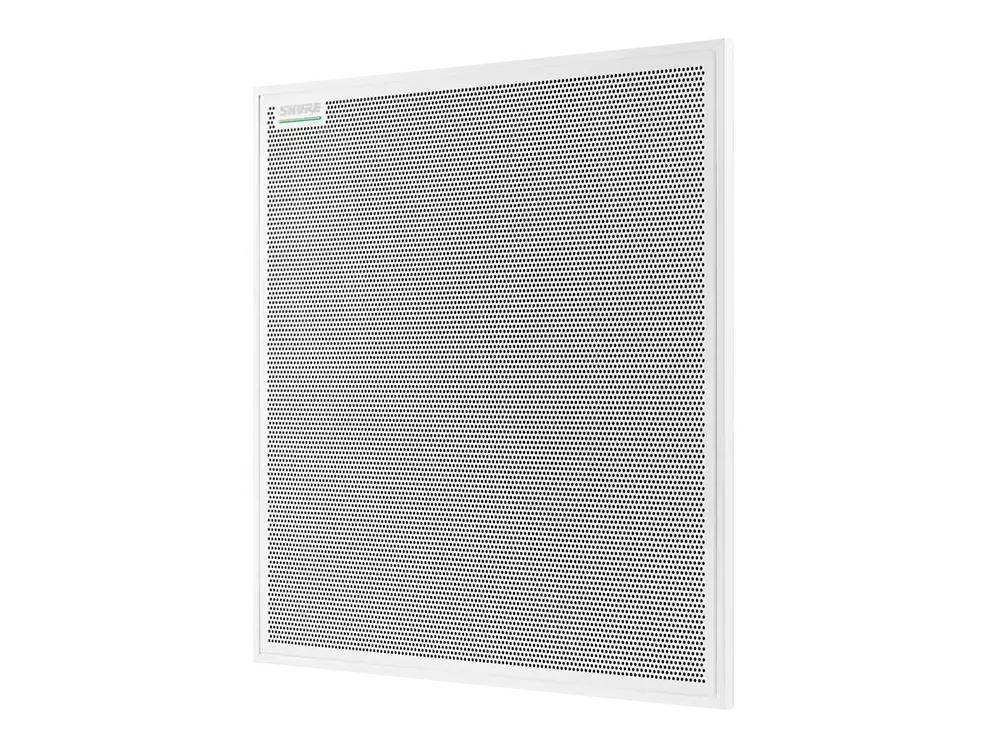

Shure MXA920 – ميكروفون مصفوفة سقفي (MXA920W-S-60CM)، تغطية 30×30 قدماً، حتى 8 مناطق تغطية

Shure MXA920 Ceiling Array Microphone Specifications: Manufacturer: Shure Model: MXA920 SKU: MXA920W-S-60CM Color: White Shape: Square Coverage Type: Automatic or steerable Power Requirements: Power over Ethernet (PoE), Class 0 Power Consumption: 10.1 W maximum Control Software: Designer or web application Plenum Rating: UL2043 (Suitable for Air Handling Spaces) Dust Protection: IEC 60529 IP5X Dust Protected AES67 or Dante Digital Output: Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel) Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement. Shure MXA920 Ceiling Array Microphone Product Benefits: How It Works: Automatic CoverageTM technology captures talkers in up to 8 adjustable coverage areas that you define without the need to aim pickup lobes. Virtual Acoustic Boundary ensures that voices or noises outside of defined automatic coverage areas will not be heard. You can also turn Automatic Coverage technology off and use Steerable CoverageTM technology to precisely aim 8 pickup lobes with individual audio outputs to feed separate loudspeaker zones for voice lift applications. Onboard IntelliMix® DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix. Quality that’s in the Details: Square and round form factors meet the architectural needs of today’s meeting spaces. White, black, and aluminum finishes to complement your interior design; all paintable for custom needs. Certified for use with Microsoft Teams and compatible with popular collaboration tools. Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable. Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data. LED status bar with configurable colors and brightness. Command strings enable seamless integration with third-party camera and room control systems. Why It's Better: Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality. Optimize Tracking feature streamlines setup and greatly improves talker location accuracy when using multiple MXA920 microphones in larger spaces. Precise coverage control provides exceptional isolation between microphone lobes and loudspeakers, guaranteeing the maximum sound level possible in voice lift and sound reinforcement applications. In larger spaces, Designer system configuration software helps you configure MXA920’s with other Microflex Ecosystem devices. Choose Teams-certified bundles with the ANIUSB-MATRIX, P300-IMX, or IntelliMix Room DSP and MXN5C networked loudspeaker. Shure MXA920 Ceiling Array Microphone Resources: Shure MXA920 Datasheet: View PDF Shure MXA920 User Guide: View PDF
