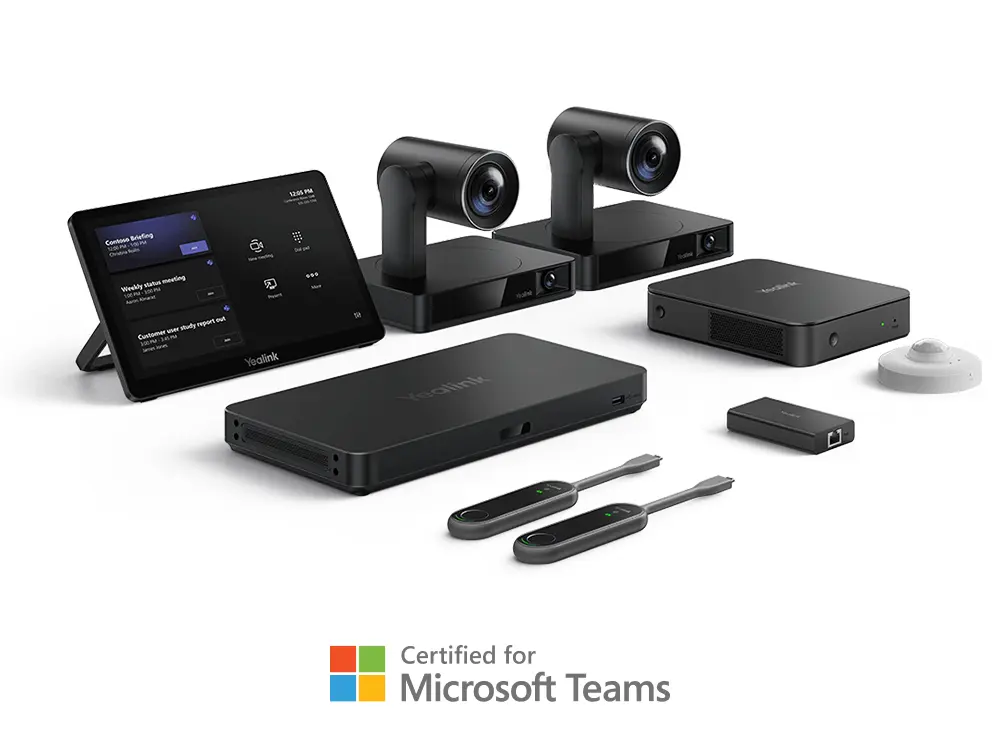

Yealink MVC S90-C5-007 – نظام Microsoft Teams Rooms، كاميرتا UVC86، MCore Kit-C5، AVHub، موسّع BYOD، وحدتا WPP30

Yealink MVC S90-C5-007 Microsoft Teams Rooms System Specifications: Manufacturer: Yealink Model: MVC S90-C5-007 Part number: 1106983 UVC86 Camera 4K Dual Camera 20.4 × HD zoom (12x optical, 1.7× digital) Auto Framing Speaker Tracking Camera presets Pan range: 200° Tilt range: 130° MCore Pro Intel Core 11th i5 Processor 8GB RAM, 128Gb SSD 3× HDMI Out Support CEC Built-in EDID Support TPM 2.0 Built-in Security Slot MTouch Plus 11.6-inch IPS Screen Anti-fingerprint & Anti-glare 1920 × 1080 Resolution Multiple Panels to Control Third-party Screen Sharing Wireless BYOD 3 Deployment Methods AVHub Easy Deployment Multi-camera Layout Audio & Video Processing Capability Up to 9 x UVC84/UVC86 Cameras Up to 8 x VCM34/VCM38 Microphones Up to 4 x MSpeaker II Speakerphones Broadly compatible with third-party DSP RoomSensor Temperature, Humidity, Light Detection Passive Infrared Technology Wireless Installation Bluetooth (BLE) 5.2 Actions with RoomPanel Management over Cloud Up to 5 Years Battery Life WPP30 Self-built Wi-Fi Network 4K/30fps Content Sharing Adaptive Software/Hardware Encoding Dual-band 2.4GHz/5GHz Networks Full-featured USB-C and USB-A Ports AES & WPA Data Encryption 4-Screen Casting Support Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation highperformance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink's exclusive multicamera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms. The MVC S90 set comes standard with two UVC86 cameras, which can support 12x optical zoom-in and intelligent follow-up shooting. On the MTouch Plus control panel, through Yealink RoomConnect, the cameras can be controlled independently and switch layouts. Yealink MVC S90 Teams Rooms System Key Features: Multi-cam solution, Flexible layout Big and flexible conference control experience Intelligent tracking, Free your hands Flexible audio, Flexible connectivity Convenient screen sharing and fast BYOD solution Simple to deploy, Easy to use Manage your devices remotely Yealink MVC S90 Microsoft Teams Rooms System Resources: Yealink MVC S90 Datasheet: View PDF
