Yealink YPS20 – حسّاس قواطع للغرف القابلة للتقسيم، أشعة تحت حمراء، مدى 1.5م، يقترن مع Yealink AP08 ووحدة تحكم الغرفة

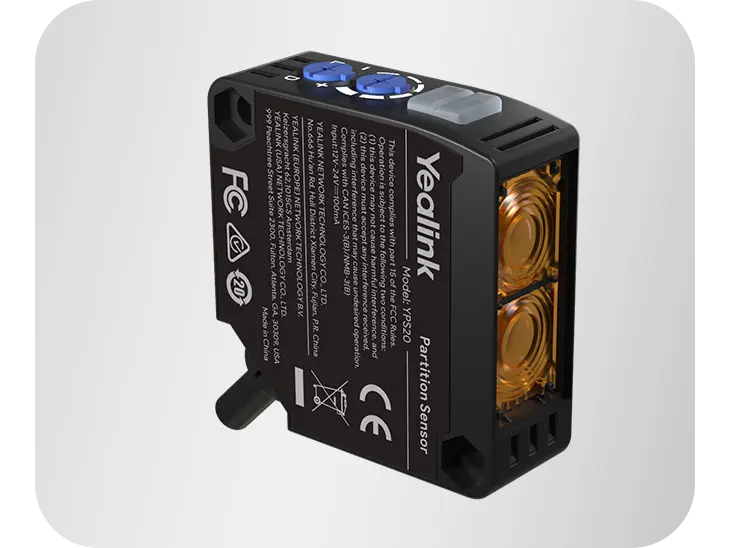

Yealink YPS20 Partition Sensor for Divisible Room Specifications: Manufacturer: Yealink Model: YPS20 Sensor Type: Diffuse Reflection Detection Distance: 1.5m Standard Detection Object: White Drawing Paper: 300×300mm Return Difference: ≤ 20% Light Source (wavelength): Infrared light-emitting diode (850nm) Response Time: Less than 0.5 ms YPS20 is a surface-mount partition sensor. This easy-to-install sensor uses an infrared (IR) beam to sense the position of the movable partition. In space, the signal strength of the infrared beam is adjustable, and the maximum effective sensing distance can reach 1.5m. The 2 LED lights on the unit provide the status of sensor power communication status and partition detection. Connected to the AP08 GPIO interface, the Room Designer software of Yealink can easily realize the adaptive setting of the divisible meeting room and easily manage the equipment status of the divisible meeting room. In terms of deployment, with the included 10-meter cable, the sensor can be arranged in the right position in the room, making partition detection easier. Yealink YPS20 Partition Sensor Key Features: Simple, compact appearance. Infrared diffuse reflection technology is used to achieve high precision and low misjudgment. Equipped with 10-meter cable, for flexible installation, wiring, and easy deployment. Effective working distance of 1. 5 m. Adjustable sensitivity to adapt to complex environments. Clear 2-color LED indicators. Use with Yealink AP08 and Yealink Room Controller for adaptive settings. Yealink YPS20 Partition Sensor Resources: Yealink YPS20 Datasheet: View PDF Yealink YPS20 Deployment & Connection: View PDF
