Yeastar TA1600 بوابة FXS متعددة المنافذ تشمل 16 منفذ FXS وإلغاء صدى الخط، ومتوافقة مع كلٍّ من SIP وIAX2.
تفاصيل المنتج والمواصفات

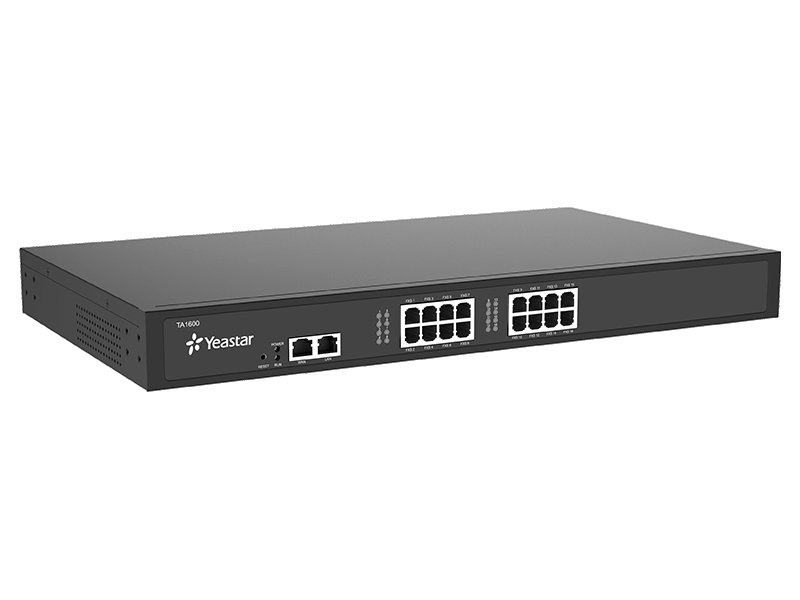

Yeastar TA1600 FXS VoIP Gateway Specifications:
Brand:
Yeastar
Model:
TA1600
RJ11 FXS Ports:
16
RJ 21 Ports:
1
LAN:
1× 10/100Mbps
WAN:
1× 10/100Mbps
Fax:
T.38 and Pass-through
Protocol:
SIP (RFC3261), IAX2
Transport:
UDP, TCP, TLS, SRTP
DTMF Mode:
RFC2833, SIP Info, In-band
Signaling:
FXS Loop Start, FXS Kewl Start
Network Protocol:
FTP, TFTP, HTTP, HTTPS, SSH
Power:
AC 100-240V (12V 5A)
Yeastar TA1600 FXS VoIP Gateway Product Features:
16 FXS ports
Advanced and flexible calling rules
Reliable fax performance with T.38
High-quality voice compression with industry standard codecs
Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
Support various methods to light up the Message Waiting Indicator
Web-based GUI for easy configuration and management
Manage customer-premised gateway remotely and securely
Interoperable with a wide range of legacy and IP equipment
Fully compliant with SIP and IAX2, also features flexible calling rules.
Yeastar TA Series FXS VoIP Gateway Use Cases:
Analog Extensions for IP-PBX:
By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.
Connect Legacy PBX with SIP Trunkings:
TA series immediately connects legacy equipment to cost-saving SIP trunkings. You could also connect analog phones and fax machines to SIP trunkings with TA series.
Besides preserving investment on legacy equipment, enterprises could also utilize the benefit of VoIP easily and conveniently.
VoIP Enabling the Hotels with TA:
TA series connect existing analog guest phones to the VoIP network that delivers guest communications with crystal clear voice call, MWI (Message Waiting Indicator) support. For hotels that wish to keep the existing hotel phones, introducing TA FXS Gateway would be a cost-effective and trouble-free solution.
Yeastar TA1600 FXS VoIP Gateway Resources:
Yeastar TASeries DataSheet:
Download PDF
