The

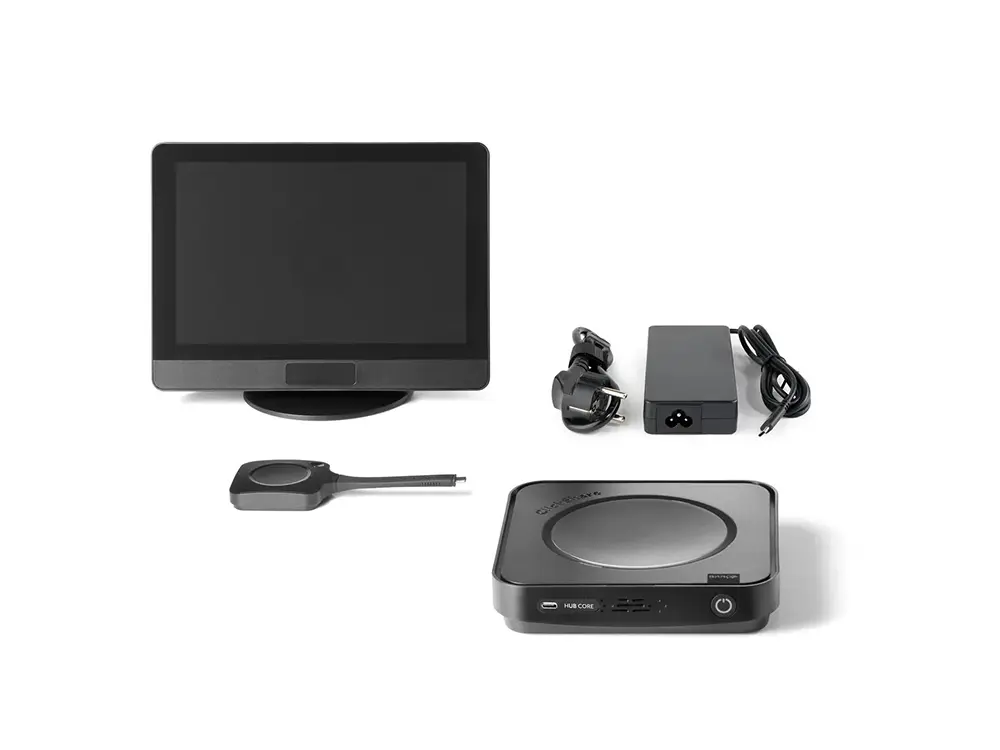

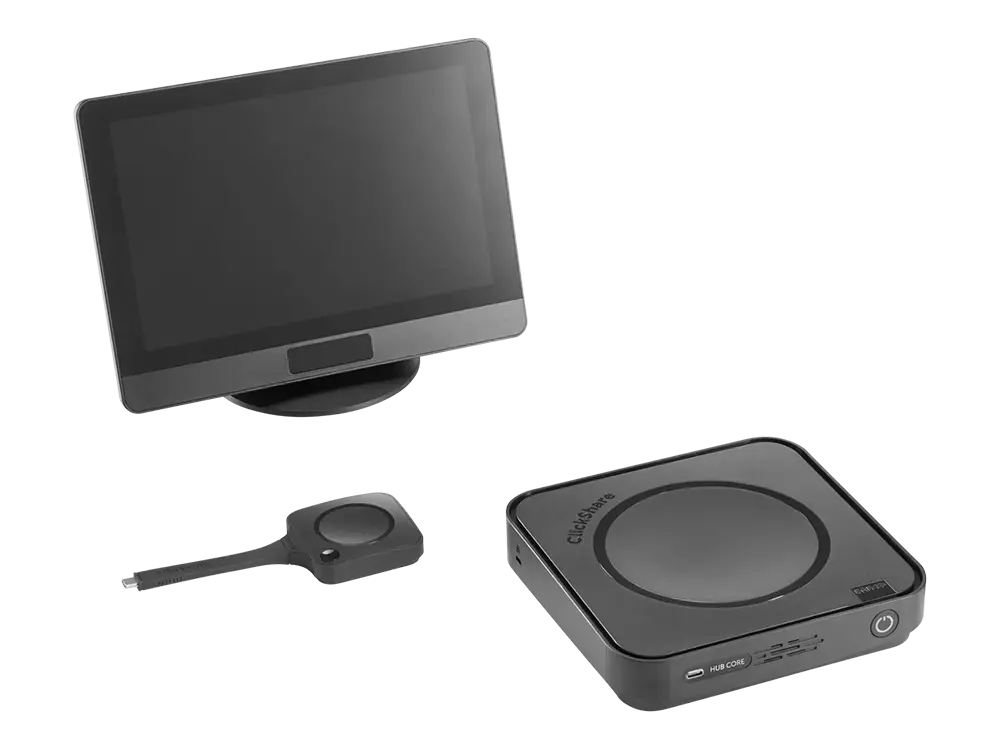

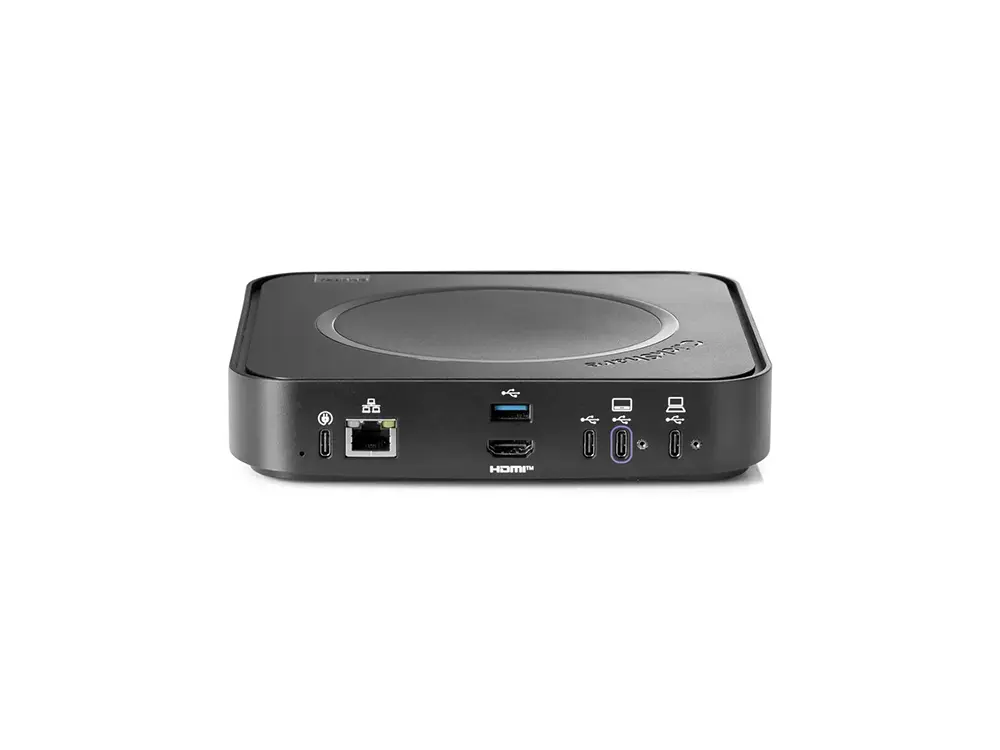

Barco ClickShare Hub Core and Control Panel Kit
is a Modular video conferencing room system for effortless hybrid meetings in Microsoft Teams Rooms with ClickShare Control Panel.
Specify ClickShare Hub Core Control Panel Kit correctly for your project
This page is specifically for the Barco ClickShare Hub Core&Control PanelKitModular Video Conferencing System, for Hybrid Meetings in MTRs by Barco, with ordering reference ClickShare Hub Core Control Panel Kit. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Barco Clickshare range.
Information that helps us prepare an accurate quote
Required quantity of model ClickShare Hub Core Control Panel Kit
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling
Detailed product information
Barco
ClickShare Hub Core and Control Panel Kit
Specifications:
Manufacturer:
Barco
Model:
ClickShare Hub Core and Control Panel Kit
Control Panel:
10.1″ capacitive touchscreen, anti-fingerprint, anti-glare, up to 4 touch points
Video outputs:
HDMI:
UW5K WUHD (5120*2160) @30Hz HDMI 2.0
eDP (Control Panel):
HD (1280*800) @60Hz DP 1.4
Video inputs:
4K UHD (3840*2160) @30Hz HDMI 2.0
Audio output:
USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0
ClickShare Buttons:
1× ClickShare Button 5th Generation
ClickShare App:
Desktop
Maximum sources simultaneously on screen:
1
Noise Level:
Maximum 25 dBA @ 30°C
Wireless transmission protocol:
IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3
Reach:
Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit
Network connection:
LAN
Hub Dimensions (H×W×D):
37 × 180 × 180 (mm)
ClickShare 10M 20W USB-C AOC Cable (Directional):
10M / 6mm, USB-C 3.2 Gen1, DP 1.4
Power supply:
100-240V~50-60Hz 2.4A, 180W max (36V 5A) / 140W (28V 5A) / 100W (20V 5A) / 45W (15V 3A) / 27W (9V 3A) / 15W (5V 3A)
ClickShare Hub Core
is a modular, wireless video conferencing system designed for effortless hybrid meetings. The Hub Core works with the
ClickShare Control Panel

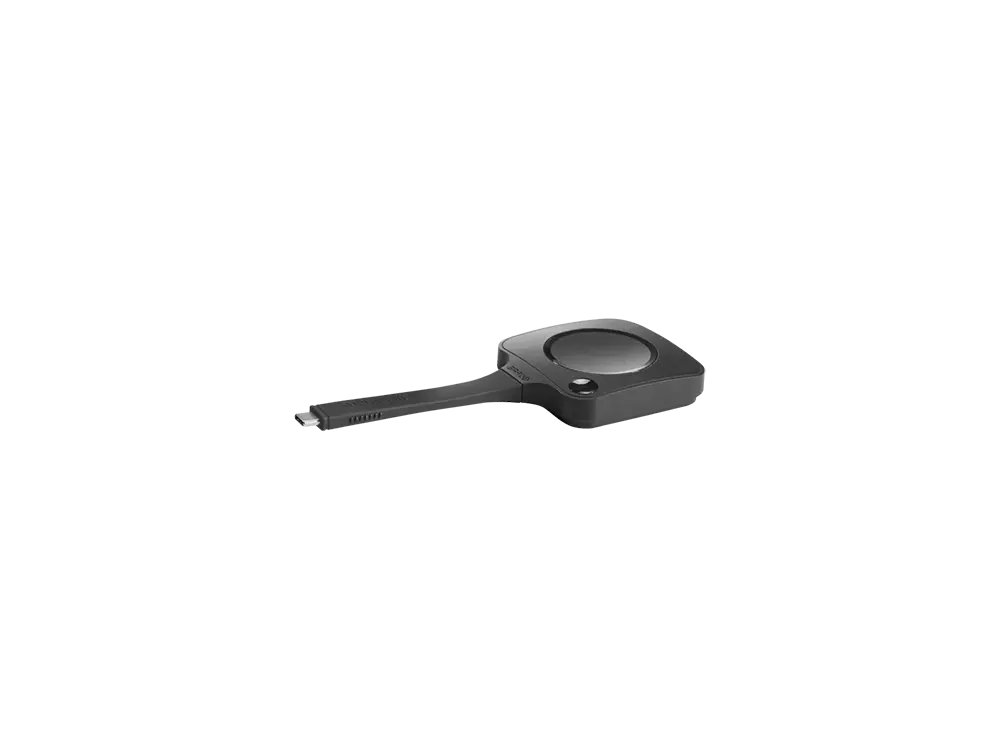

and it enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen
ClickShare Button
. For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
Barco
ClickShare Hub Core and Control Panel Kit
Key Features:
Wireless presentation: 4K content sharing with 1 Button.
Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™.
Intuitive Control Panel for one-tap start to your hybrid meetings.
Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP).
Sustainable product with Barco Eco label A+ .
Works as part of a room system bundle certified for Microsoft Teams.
Barco
ClickShare Hub Core and Control Panel Kit
Resources:
ClickShare Hub Core and Control Panel Kit Datasheet:
View PDF
Model: USB Extender, USB2CAT5E-EXT
Display: 10.1”, Touch Screen
ClickShare Buttons: 1
Video Quality: 1080P, 60fps, HD
Specifications
Model code
ClickShare Hub Core Control Panel Kit
Model
USB Extender, USB2CAT5E-EXT
Display
10.1”, Touch Screen
ClickShare Buttons
1
Video Quality
1080P, 60fps, HD
Connectivity
Gigabit Ethernet, Wi-Fi
Sources Simultaneously on Screen
2
Size
26 × 7 × 4 in
Compatibility
Yealink VC800
Interface
HDMI video input, RJ45 port, USB 2.0 Type C, USB 2.0 Type-A Port
Power Source
2 AAA Battaries
Camera
1/3” HD CMOS
Microphones
8 MEMS microphone array
Speakers
5W speaker, Built-in
Protocol
UAC 1.0, UVC 1.0
Length
5 meters
Integrated PoE
Yes
