The
Barco ClickShare Hub Pro
is a Premium modular wireless video conferencing room system designed for enhanced effortless hybrid meetings in Microsoft Teams Rooms.
Specify ClickShare Hub Pro correctly for your project
This page is specifically for the Barco ClickShare Hub ProPremium Video Conferencing Room System, for Hybrid Meetings in Microsoft Teams Rooms by Barco, with ordering reference ClickShare Hub Pro. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Barco Clickshare range.
Information that helps us prepare an accurate quote
Required quantity of model ClickShare Hub Pro
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling
Detailed product information
Barco
ClickShare Hub Pro
Premium Modular Video Conferencing System Specifications:
Manufacturer:
Barco
Model:
ClickShare Hub Pro
Video outputs:
HDMI-1:
UW5K WUHD (5120*2160) @30Hz HDMI 2.0
HDMI-2:
4K UHD (3840*2160) @30Hz HDMI 2.0
eDP (Control Panel):
HD (1280*800) @60Hz DP 1.4
Video inputs:
4K UHD (3840*2160) @30Hz HDMI 2.0
Audio output:
USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0
ClickShare Buttons:
2× ClickShare Button 5th Generation
ClickShare App:
Desktop
Maximum sources simultaneously on screen:
1
Noise Level:
Maximum 25 dBA @ 30°C
Wireless transmission protocol:
IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3
Reach:
Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit
Network connection:
LAN
Dimensions (H×W×D):
37 × 180 × 180 (mm)
Power supply:
External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR)
Weight:
720gr
ClickShare Hub Pro
is a premium, modular wireless video conferencing system for enhanced hybrid meetings. The Hub Pro works with the
ClickShare Control Panel
and enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy with two next-gen
ClickShare Buttons
. Paired with dual display support, the Hub enhances engagement and collaboration. For IT managers and integrators,
ClickShare Hub Pro
offers a customizable solution for all room types. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
Barco
ClickShare Hub Pro
Video Conferencing System Key Features:

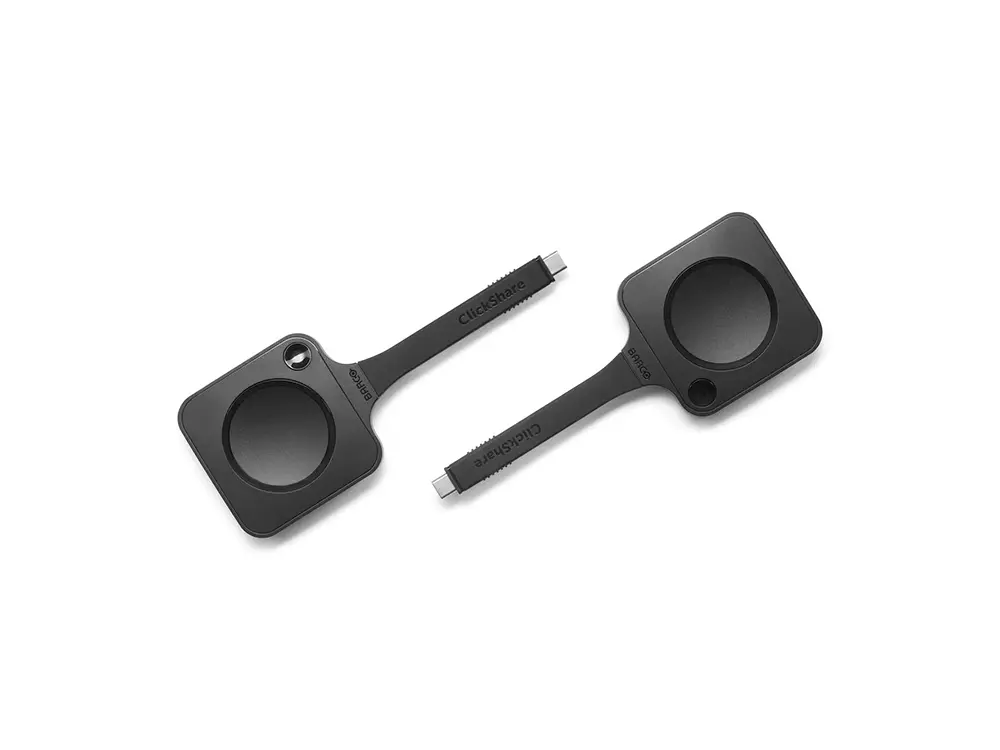

Wireless presentation: 4K content sharing with 2 next-gen ClickShare Buttons with USB-C DisplayPort™.
Dual display support.
Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP).
Sustainable product with Barco Eco label A+.
Works as part of a room system bundle certified for Microsoft Teams.
Barco
ClickShare Hub Pro
Modular Conferencing System Resources:
ClichShare Hub Pro Datasheet:
View PDF
Model: USB Extender, USB2CAT5E-EXT
ClickShare Buttons: 1
Video Quality: 30fps, 4K
Connectivity: Bluetooth 4.2, USB 2.0
Specifications
Model code
ClickShare Hub Pro
Model
USB Extender, USB2CAT5E-EXT
ClickShare Buttons
1
Video Quality
30fps, 4K
Connectivity
Bluetooth 4.2, USB 2.0
Sources Simultaneously on Screen
2
Camera
1/2.5” CMOS, 8.51MP
Microphones
8 MEMS microphone array
Speakers
5W speaker, Built-in
Protocol
UVC 1.0, UVC 1.5
Interface
USB 2.0
Length
20 meters
Voice Pickup Range
360°, 6.5 feet (2 meters)
Battary
2450mAh, Li-Po
ClickShare Hub Pro
