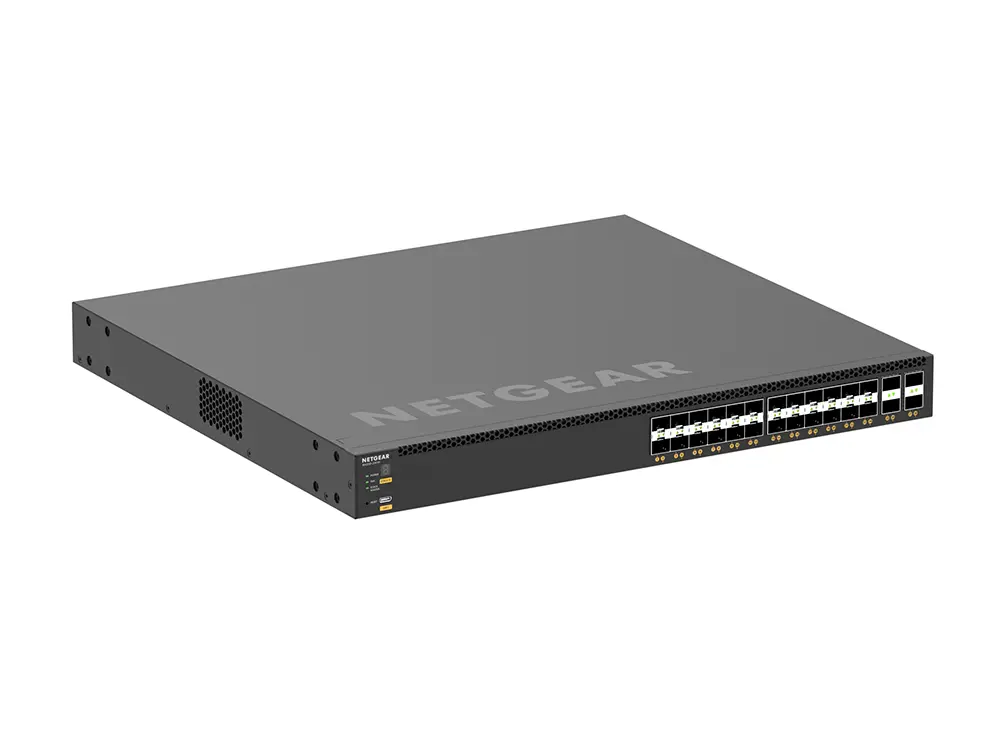

The Crestron CEN‑SWSFP‑28 is a 28 port Class-leading NETGEAR® AV network switch with 24 10 Gigabit Base-X SFP+ ports and four 25 Gigabit Base-X SFP28 ports.
Specify CEN-SWSFP-28 correctly for your project
This page is specifically for the Crestron CEN-SWSFP-2828-Port Managed Switch with Redundant Power Supply Slot, NETGEAR® AV Network Switch by Crestron, with ordering reference CEN-SWSFP-28. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Accessories range.
Information that helps us prepare an accurate quote
- Required quantity of model CEN-SWSFP-28
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information
Crestron
CEN-SWSFP-28
PoE+ Network Switch Specifications:
Manufacturer:
Crestron
Model:
CEN-SWSFP-28
Ports:
(24) 10 Gigabit Base-X SFP+; (4) 25 Gigabit Base-X SFP28
Network Standards:
IEEE 802.3af, 802.3at
MAC Addresses:
Up to 16K
Switch Fabric:
680 Gbps non-blocking
Connectors:
OOB:
(1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port
USB-C:
USB-C® port, female
100-240V:
(1) power connector
PSU:
(1) Modular power supply slot for CEN-SWSFP-PWS350 (sold separately)
USB 3.0:
(2) USB Type A connectors, female
1-24:
(24) SFP+ ports, female; 10 Gigabit Base-X SFP+
25-28:
(4) SFP28 ports, female; 25 Gigabit Base-X SFP28
Chassis:
Metal, black finish, fan-cooled, vented sides
Mounting:
Freestanding or 1U 19-inch rack-mountable with reversible rack ears
Main Power:
6.3A @ 100-240VAC, 50/60 Hz
Power Consumption:
Full Mesh Traffic: 119.3 W; Standby: 45.2 W
Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The
CEN‑SWSFP‑28
is a 28 port managed Ethernet switch with 24 10 Gigabit Base-X SFP+ ports and four 25 Gigabit Base-X SFP28 ports. All of the SFP ports enable use of transceiver modules to connect to a multimode or single-mode fiber network. When configuring a DM NVX AV-over-IP or DM NAX Audio-over-IP network, select the appropriate profile to automatically configure the
CEN‑SWSFP‑28
with the multicast management functionality required. Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available. The
CEN‑SWSFP‑28
features a modular power supply slot compatible with the
CEN‑SWSFP‑PWS350
for power redundancy.
Crestron
CEN-SWSFP-28
26 Port PoE+ Network Switch Features:
Class-leading NETGEAR® AV network switch.
Rack-mount 28 port managed switch.
One slot for modular power supply unit (sold separately).
Twenty-four 10 Gigabit Base-X SFP+ ports.
Four 25 Gigabit Base-X SFP28 ports.
Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles.
Layer 2 and Layer 3 managed switching functionality.
LLDP (Link Layer Discovery Protocol) support.
680 Gbps switching fabric (non-blocking).
Simple-to-use Web browser interface.
Crestron
CEN-SWSFP-28
28 Port Managed Switch with Redundant Power Supply Slot Resources:
Crestron CEN-SWSFP-28 Spec Sheet:
View PDF
