Fanvil
i63
allows users to make audio/video calls via 5 speed-dial buttons and a 2 Mega-pixel camera and achieve access control by different modes, with rich input and output interfaces.
Specify i63 correctly for your project
This page is specifically for the Fanvil i63 – SIP Outdoor Video Doorphone i63, 2MP Camera, Five Speed-dial Buttons, 2 SIP Lines, DTMF, RFID/IC Card, NFC, TF Card, IP66, IK07, PoE by Fanvil, with ordering reference i63. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Intercom & Paging range.
Information that helps us prepare an accurate quote
Required quantity of model i63
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling
Detailed product information
Fanvil
i63
SIP Outdoor Video Doorphone Specifications:
Manufacturer:
Fanvil
Model:
i63
Speed-dial Buttons:
5 buttons
SIP Lines:
2
Camera:
2MP
Access Card Number:
1000
Tamper-Proof:
√
Motion Detection:
√
Supplement Light:
IR Supplement
TF Card:
Up to 128G
Short Circuit Output:
2
Short Circuit Input:
3
Protection Level:
IP66, IK07
Ways to Unlock Door:
DTMF, RFID/IC Card, NFC, Indoor Switch, Timed open door
Based on SIP and ONVIF protocols,

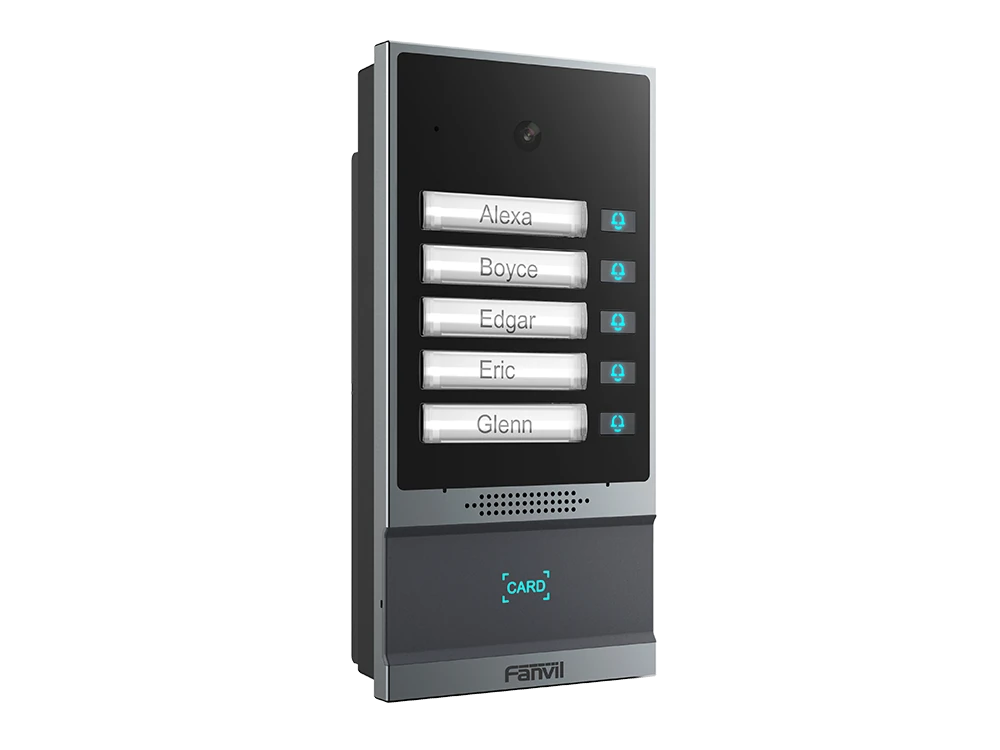

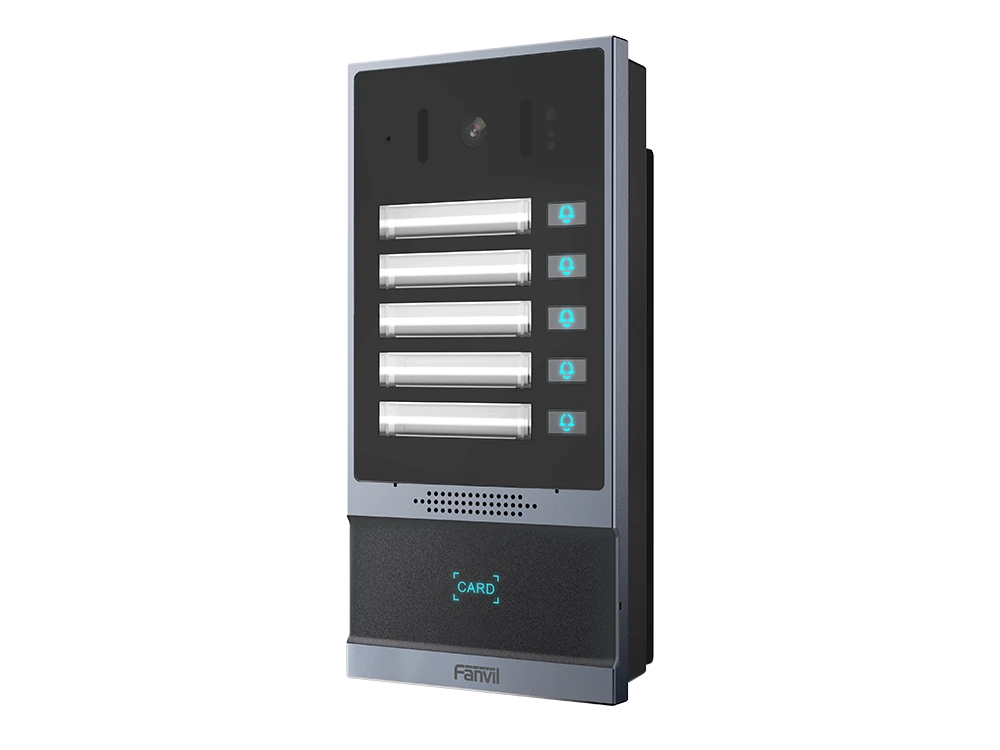

Fanvil i63
is a video door phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and 5 speed-dial buttons,
i63
delivers a high-quality elegant appearance. With high protection level IP66 and IK07, it is waterproof, dustproof and anti-collision in most outdoor environments.
i63
allows users to make audio/video calls via a speed-dial button and a 2 Mega-pixel camera and achieve access control by different modes. With rich input and output interfaces,
i63
is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.
Fanvil
i63
SIP Outdoor Video Doorphone Product Features:
With high protection level of IP66 and IK07, wide temperature range from -40℃ to 70℃, it can work perfectly in most outdoor environments.
Support to open the door with RFID/IC cards, NFC, indoor switch, remote DTMF, Timed open door.
Aluminum alloy design and 5 speed-dial buttons.
Built in 2M pixels wide-angle camera: 120º(H), 60º(V) with infrared night-vision feature.
Fitted with a tamper switch that detects unauthorized opening of the device itself.
Compatible with SIP and ONVIF protocols.
Built-in 3 short-in detect ports and 2 short-out control ports, can be integrated with induction loop antenna.
Built-in maximum 128GB capacity TF card slot for image storage.
HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller.
Fanvil
i63
SIP Outdoor Video Doorphone Resources:
Fanvil i63 DataSheet:
Download PDF
Model: C312S
Camera: 1MP, CMOS
Interface: DTMF, RFID/IC Card, NFC, Indoor Switch, Timed open door
Ethernet Ports: 10/100 Mbps, RJ45
Specifications
Model code
i63
Model
C312S
Camera
1MP, CMOS
Interface
DTMF, RFID/IC Card, NFC, Indoor Switch, Timed open door
Ethernet Ports
10/100 Mbps, RJ45
Integrated PoE
Yes
Protection
IK07, IP66-level
Speakers
4Ω / 2W
RRF Card Reader
13.56MHz
Connectivity
Built-in Bluetooth, Wi-Fi
Microphones
-36 db
Display
7″, TFT, Touch Screen
Lines
1-Line
i63
