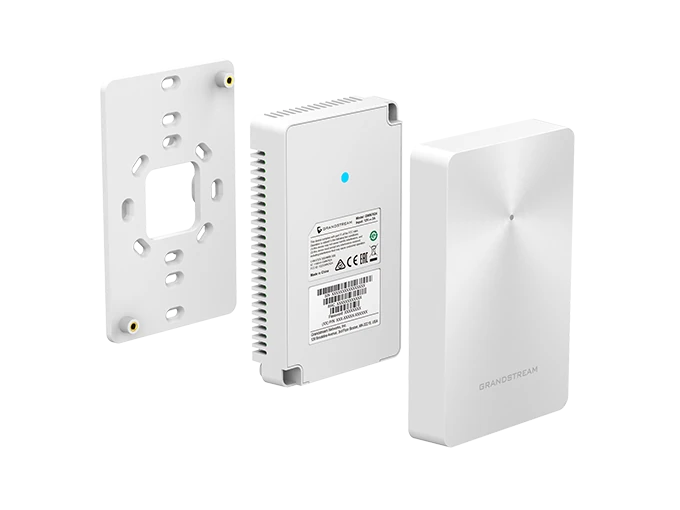

The GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium-sized businesses, offices, residential and commercial locations, hotels, and more.
Specify GWN7624 correctly for your project
This page is specifically for the Grandstream GWN7624 – In-Wall Access Point GWN7624, 5GHz 4×4:4 MU-MIMO, 200+ Concurrent Clients, Up to 100m Coverage, Gigabit, PoE Support by Grandstream, with ordering reference GWN7624. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Networking Solutions range.
Information that helps us prepare an accurate quote
- Required quantity of model GWN7624
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information
Grandstream GWN7624 Wi-Fi Access Point Specifications:
Manufacturer:
Grandstream
Model:
GWN7624
Wi-Fi Standards:
IEEE 802.11 a/b/g/n/ac
Antennas:
Two 5G & two double frequency internal antennas
2.4GHz, gain 3dBi;
5GHz, gain 5dBi
MIMO:
2×2:2 2.4GHz(MIMO), 4×4:4 5GHz(MU-MIMO)
Coverage Range:
Up to 100 meters
SSID:
16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients:
200+
Network Interfaces:
1x 10/100/1000M uplink Ethernet port with PoE/PoE+
2x 10/100/1000M Ethernet port with PSE
1x 10/100/1000M Ethernet port
Auxiliary Ports:
1x Reset Pinhole
Mounting:
In-wall mountable
QoS:
802.11e/WMM, VLAN, TOS
PoE:
Support 802.3az, PoE 802.3af/ 802.3at
The GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium-sized businesses, offices, residential and commercial locations, hotels, and more. It provides three Gigabit network ports to provide IP phones, IPTV, computers, and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+. The GWN7624 offers 2.4G 2×2:2, 5G 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. This access point is designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment. To ensure easy installation and management, the GWN7624 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7624 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-overWi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, and 200 concurrent clients per AP, the GWN7624 is an ideal Wi-Fi access point for medium wireless network deployments with medium user density.
Grandstream GWN7624 Wi-Fi Access Point Product Features:
2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Grandstream GWN7624 Wi-Fi Access Point Package Contents:
1× GWN7624 Access Point
2× Screws (PM2.5×6×4mm)
2× Screws (KB 2.6×6)
4× Screws (KB 3.5×26)
1× Quick Installation Guide
Grandstream GWN7624 Wi-Fi Access Point Resources:
Grandstream GWN7624 DataSheet:
Download PDF
Grandstream GWN7624 Quick Installation Guide:
Download PDF
