The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, allowing users to connect their analog devices to a manageable VoIP network.
Specify HT801 correctly for your project
This page is specifically for the Grandstream HT801 – Analog Telephone Adapter HT801, 1 SIP Profile, 1 RJ11 FXS Port, 1 RJ45 Ethernet Port by Grandstream, with ordering reference HT801. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the FXS Gateways range.
Information that helps us prepare an accurate quote
- Required quantity of model HT801
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information

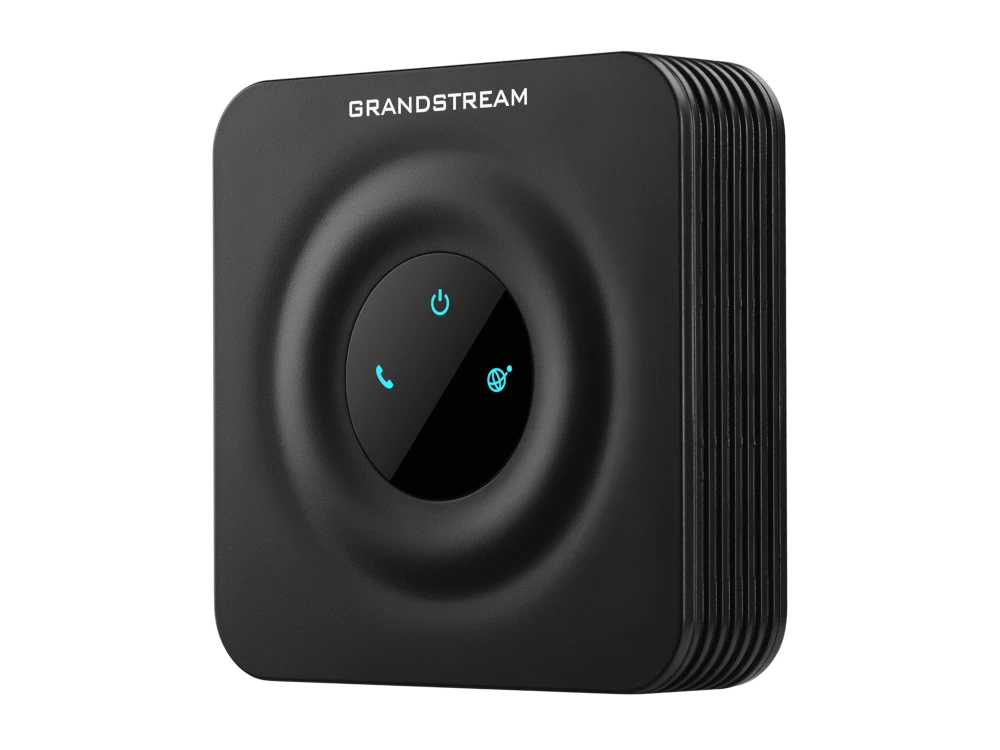

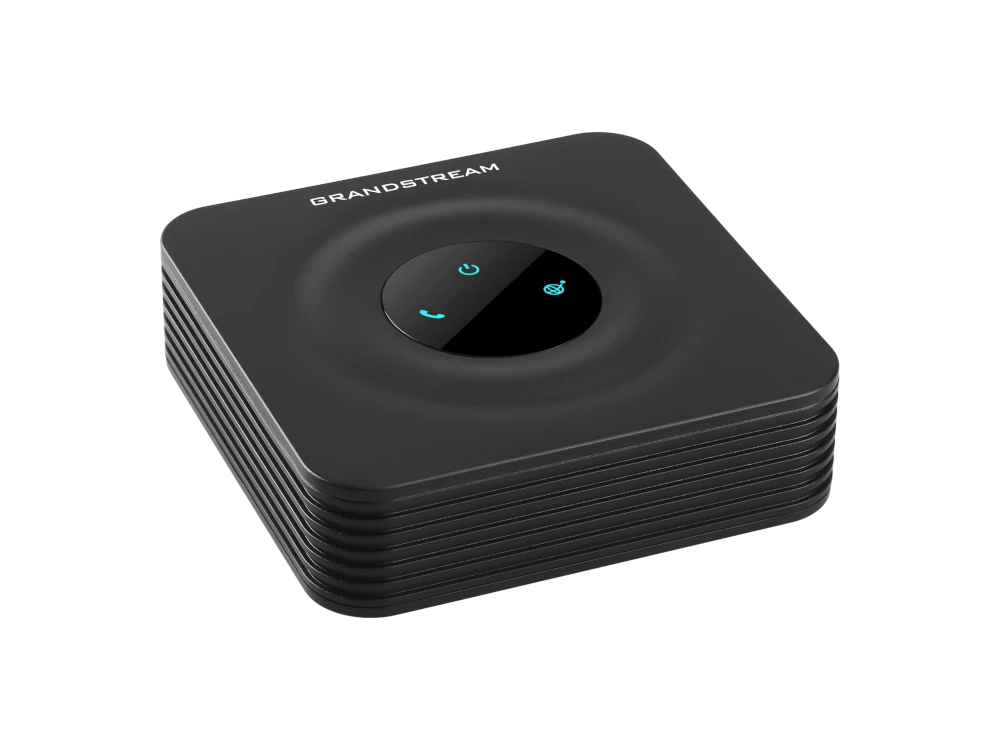

Grandstream HT801 Analog Telephone Adapter Specifications:
Manufacturer:
Grandstream
Model:
HT801

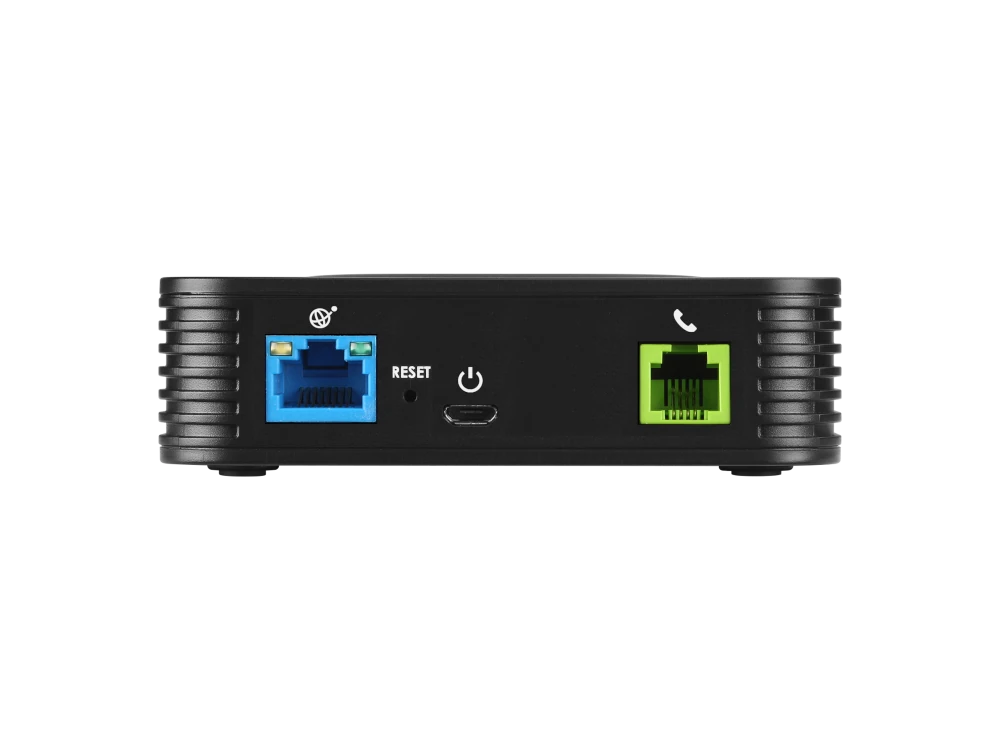

Telephone Interfaces:
One (1) FXS port
Network Interfaces:
One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
LED Indicators:
POWER, INTERNET, PHONE
Factory Reset Button:
Yes
Fax Over IP:
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load:
5 REN: Up to 1km on 24 AWG
Caller ID:
Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
QoS:
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, Diffserv, MPLS)
DTMF Method:
In-audio, RFC2833 and/or SIP INFO
Power Supply:
Input: 100-240VAC, 50-60Hz, Output: 5.0VDC/1.0A
Telephony Features:
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.
Grandstream HT801 Analog Telephone Adapter Product Features:
Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
Supports 3-way voice conferencing
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Failover SIP server automatically switches to secondary server if main server loses connection
Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Grandstream HT801 Analog Telephone Adapter Package Contents:
1× HT801
1× Ethernet Cable
1× 5V Power Adapter
1× Quick Installation Guide
1× GPL License
Grandstream HT801 Analog Telephone Adapter Resources:
Grandstream HT801 DataSheet:
Download PDF
Grandstream HT801 Quick Installation Guide:
Download PDF
