AD-C4T-ZB-WH

Q-SYS · Professional Speakers

Q-SYS AD-C4T-ZB-WH

Model codeAD-C4T-ZB-WH

Price on quote

Custom quote within 24h

Quantity needed

Talk to a specialist

Delivery & Install

Across the Kingdom

2-year Warranty

Authorized brand

Local Support

Arabic, in Riyadh

Overview

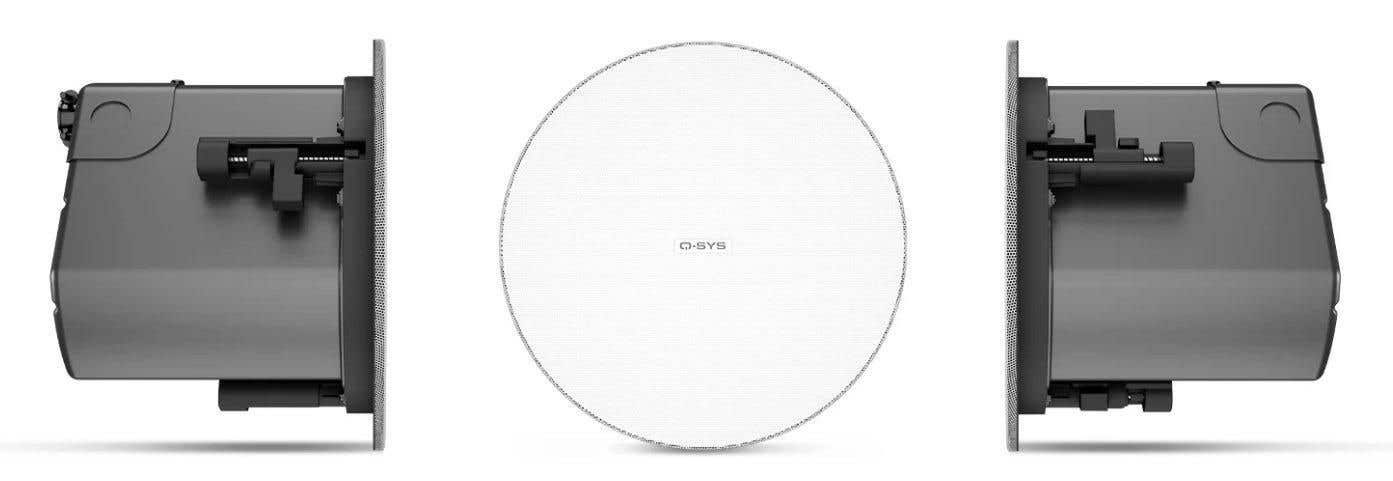

4.5″ two‑way ceiling speakers with a 70/100 V transformer and 16 ohm bypass. Features a zero‑bezel design with 150° conical DMT coverage. Supplied with C‑ring and rails for blind‑mount installation. Priced individually and must be purchased in pairs. White only.

Specify AD-C4T-ZB-WH correctly for your project

This page is specifically for the Q-SYS AD-C4T-ZB-WH by Q-SYS, with ordering reference AD-C4T-ZB-WH. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Professional Speakers range.

Information that helps us prepare an accurate quote

Required quantity of model AD-C4T-ZB-WH
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling

Manufacturer: Q-SYS

Model / MPN: AD-C4T-ZB-WH

Product type: 4.5-inch two-way zero-bezel ceiling loudspeaker

Drivers: 4.5-inch weather-treated woofer; 0.75-inch aluminum-dome tweeter

Specifications

Model code

AD-C4T-ZB-WH

Manufacturer

Q-SYS

Model / MPN

AD-C4T-ZB-WH

Product type

4.5-inch two-way zero-bezel ceiling loudspeaker

Drivers

4.5-inch weather-treated woofer; 0.75-inch aluminum-dome tweeter

Effective frequency range

70 Hz – 20 kHz

Rated coverage

150° conical DMT

Rated noise power

30 W / 22 V RMS

Maximum SPL

102 dB continuous / 108 dB peak

Transformer / impedance

70/100 V selectable taps; 16 Ω bypass

Transformer taps

70 V: 30, 15, 7.5, 3.75 W; 100 V: 30, 15, 7.5 W

Connection

Euroblock with parallel output

Ingress / environment

IP34; indoor use

Ceiling cutout

195 mm diameter

Dimensions

230 mm diameter × 176 mm height

Net weight

2.9 kg

Included mounting hardware

C-ring, tile rails and screws, cutout template, Euroblock connector and grille

Finish

White, RAL 9003

AD-C4T-ZB-WH

Searching for AD-C4T-ZB-WH in Saudi Arabia?

Barq Technology is an authorized supplier in Riyadh. Request a quote for delivery, installation and 2-year warranty coverage.

Q-SYSProfessional SpeakersRiyadh

FAQ

How do I order this product?

Submit a quote request using the form above. Our team responds within 24 hours with pricing, availability and delivery details.

Do you provide installation?

Yes. All Barq Technology products include professional installation by our certified technicians across Saudi Arabia.

Is it covered by warranty?

Yes. Every product comes with a minimum 2-year warranty and ongoing local support from our Riyadh team.

Do you deliver outside Riyadh?

We deliver and install nationwide across the Kingdom of Saudi Arabia.
