6.5-inch two-way Q-SYS AcousticDesign zero-bezel ceiling loudspeaker with 135° conical DMT coverage, selectable 70/100 V transformer taps and 16 Ω bypass. White RAL 9003 finish.
Specify AD-C6T-ZB-WH correctly for your project
This page is specifically for the Q-SYS AD-C6T-ZB-WH by Q-SYS, with ordering reference AD-C6T-ZB-WH. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Professional Speakers range.
Information that helps us prepare an accurate quote
- Required quantity of model AD-C6T-ZB-WH
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information

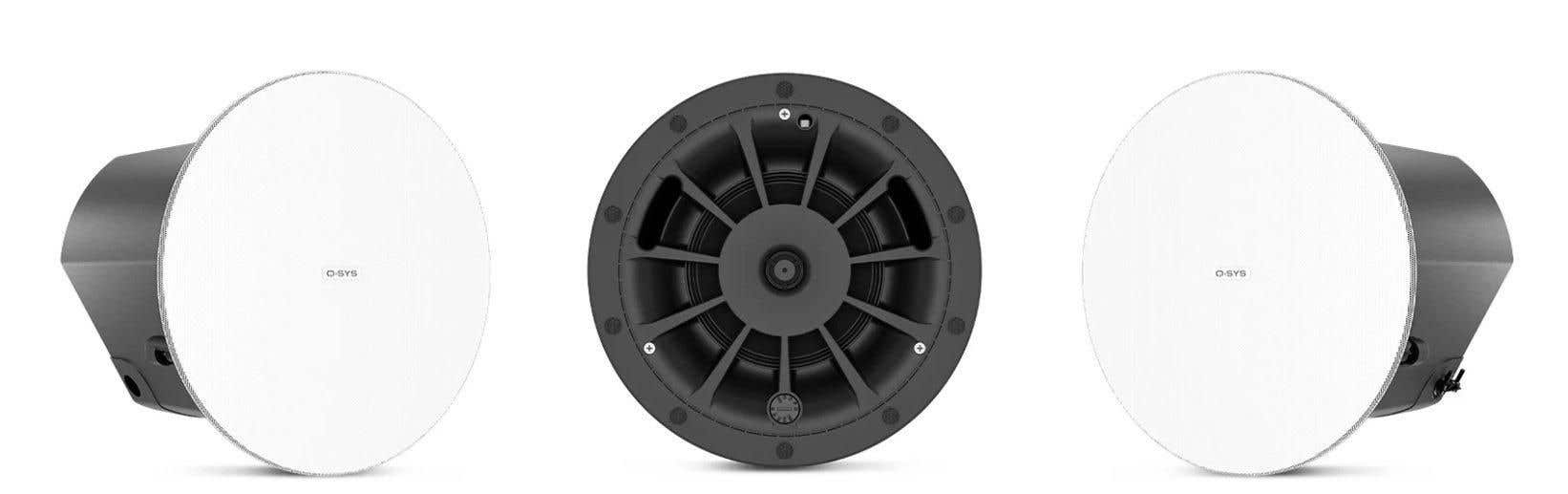

The Q-SYS AD-C6T-ZB-WH is a 6.5-inch, two-way zero-bezel ceiling loudspeaker for foreground and background sound reinforcement. It combines a weather-treated paper-cone woofer with a 0.75-inch aluminum-dome tweeter mounted on a DMT waveguide. The rated effective range is 65 Hz to 20 kHz with 135° conical DMT coverage, 60 W rated noise power, and maximum output of 106 dB continuous or 112 dB peak. A low-loss 70/100 V transformer provides selectable taps plus 16 Ω bypass, while a locking Euroblock connector supports parallel wiring. Three long-travel dog-ear clamps accommodate ceiling material up to 57 mm thick. The supplied installation package includes a C-ring, tile rails and screws, cutout template, Euroblock connector, and magnetic grille. This WH variant is white RAL 9003.
Product type
6.5-inch two-way zero-bezel ceiling loudspeaker
Drivers
6.5-inch weather-treated woofer; 0.75-inch aluminum-dome tweeter
Effective frequency range
65 Hz – 20 kHz
Rated coverage
135° conical DMT
Rated noise power
60 W / 22 V RMS
Maximum SPL
106 dB continuous / 112 dB peak
Transformer / impedance
70/100 V selectable taps; 16 Ω bypass
Transformer taps
70 V: 60, 30, 15, 7.5 W; 100 V: 60, 30, 15 W
Connection
Euroblock with parallel output
Ingress / environment
IP34; indoor use
Ceiling cutout
245 mm diameter
Dimensions
280 mm diameter × 237 mm height
Included mounting hardware
C-ring, tile rails and screws, cutout template, Euroblock connector and grille
