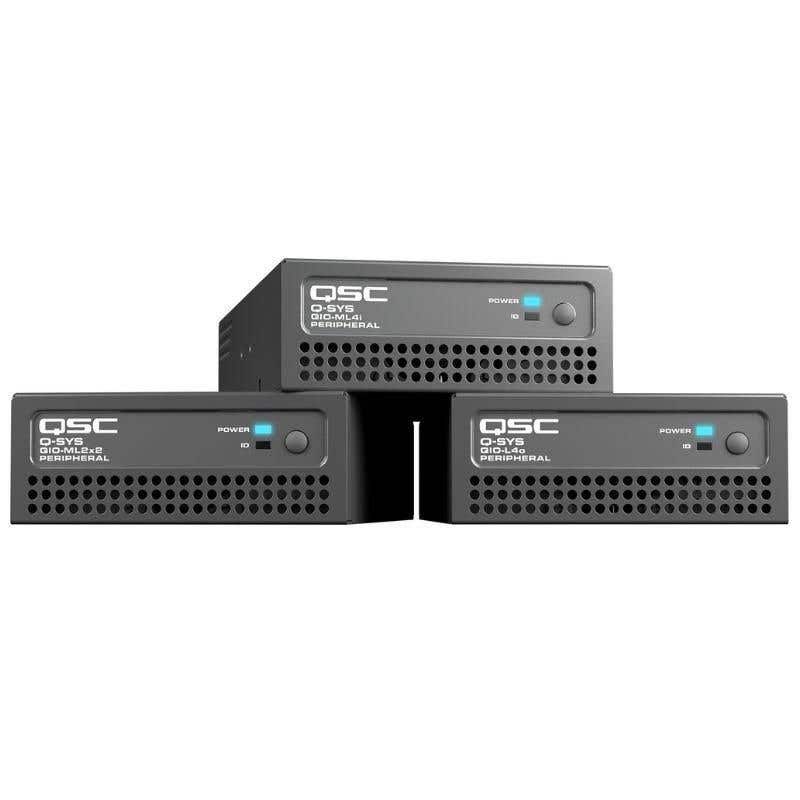

Q-SYS QIO-ML2x2

Model codeQIO-ML2x2

Price on quote

Custom quote within 24h

Quantity needed

Talk to a specialist

Delivery & Install

Across the Kingdom

2-year Warranty

Authorized brand

Local Support

Arabic, in Riyadh

Overview

Q-SYS peripheral providing 2 mic/line inputs and 2

Specify QIO-ML2x2 correctly for your project

This page is specifically for the Q-SYS QIO-ML2x2 by Q-SYS, with ordering reference QIO-ML2x2. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the AV Networking & I/O range.

Information that helps us prepare an accurate quote

Required quantity of model QIO-ML2x2
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling

Manufacturer: Q-SYS

Model / MPN: QIO-ML2x2

Product type: Native Q-SYS network mic/line input and line-output expander

Audio I/O: 2 mic/line inputs and 2 line-level outputs; balanced or unbalanced

Specifications

Model code

QIO-ML2x2

Manufacturer

Q-SYS

Model / MPN

QIO-ML2x2

Product type

Native Q-SYS network mic/line input and line-output expander

Audio I/O

2 mic/line inputs and 2 line-level outputs; balanced or unbalanced

Maximum input level

+24 dBu

Input gain range

0 dB to 60 dB

Input sensitivity range

-36 dBu to +24 dBu

Phantom power

+48 VDC, 10 mA maximum per input

Input impedance

5 kΩ unbalanced; 10 kΩ balanced

Line-output range

-36 dBu to +24 dBu

Output dynamic range

108 dB

Output impedance

150 Ω to 300 Ω

Audio format

48 kHz, 24-bit

Network

Gigabit LAN for Q-LAN plus LAN THRU for Ethernet daisy-chaining

PoE

IEEE 802.3af Type 1, Class 3

Local power

24 VDC nominal, 2.5 A Euroblock input with second connector for DC daisy-chaining; QIO-PSU sold separately

Mounting

Surface and wall hardware included; optional QIO-RMK supports 1RU quarter-rack mounting

Dimensions

215.9 × 108 × 40.4 mm (8.5 × 4.25 × 1.59 in)

Weight

0.78 kg (1.72 lb)
