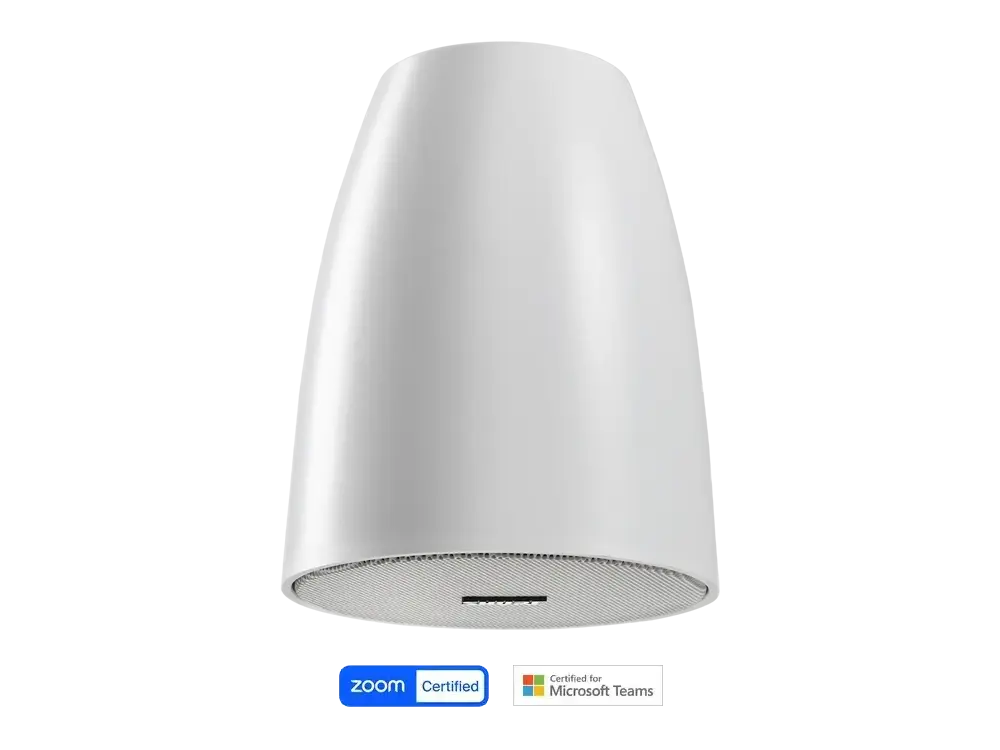

Compact pendant-style passive loudspeaker for audio reproduction in meeting rooms. Microflex Conference Loudspeakers are designed for conferencing with clear, intelligible audio.
Specify MXP-1W correctly for your project
This page is specifically for the Shure Microflex MXP-1 Mini Pendant Conferencing Loudspeaker (MXP-1W), Easy Installation, Certified for Success by Shure, with ordering reference MXP-1W. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Accessories range.
Information that helps us prepare an accurate quote
Required quantity of model MXP-1W
Project location and expected delivery date
Installation, configuration or integration with an existing system
Required accessories, licences, mounts or cabling
Detailed product information
Shure Microflex®
MXP-1
Mini Pendant Conferencing Loudspeaker Specifications:
Manufacturer:
Shure
Model:
MXP-1
SKU:
MXP-1W
Color:
White
Frequency Response (-3 dB):
~120Hz – 20kHz
Nominal Impedance:
8Ω
Coverage Angle:
88°
Maximum SPL:
AES75 max linear sound levels: 93 dBZ, 111 dBZpk, 93 dBA
Sensitivity:
85 dB SPL 1W/1 meter
Connector Type:

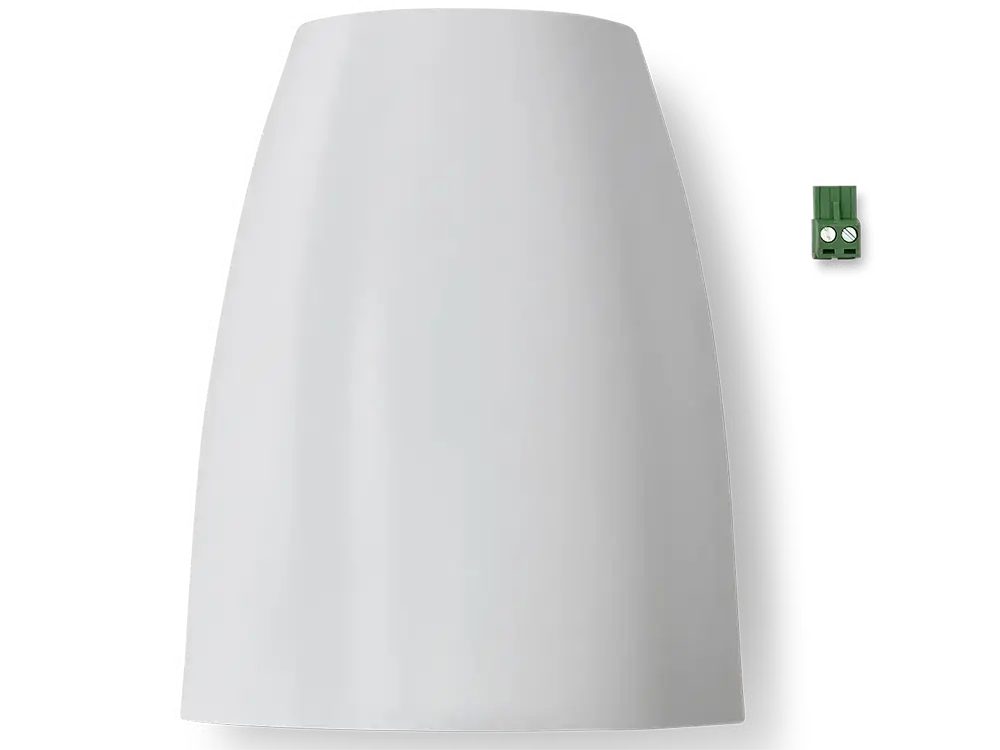

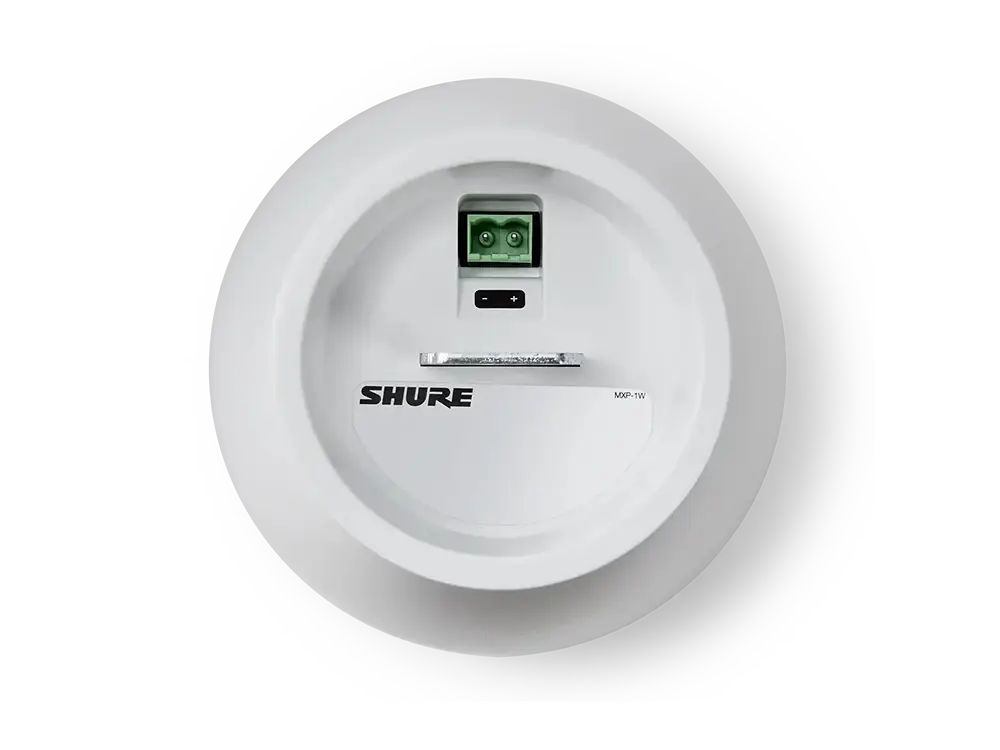

2-pin connector, 0.2 in. (5.08 mm) pitch, Jiekle 2EDG-5.08 V/R
Maximum Input Power:
20W
Weight:
1.48 lbs (0.67 kg)
Product Dimensions:
6.2 x 5 x 5 in. (157 x 127 x 127 mm)
Operating Temperature Range:
-7 to 40°C (19.4 to 104°F)
Compact pendant-style passive loudspeaker for speech and program audio reproduction in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, IntelliMix DSP, and Microflex amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-manufacturer solution.
Shure Microflex®
MXP-1
Mini Pendant Passive Loudspeaker Features:
Innovative Balanced Mode Radiator (BMR) driver is voiced specifically for speech intelligibility in conferencing and meeting applications.
Wide dispersion for complete room coverage and consistent sound quality for every listener.
Flat-disc diaphragm provides more natural sound than conventional cone-shaped diaphragms and a more compact size.
Eliminates the need for a crossover in the critical 1-3 kHz speech frequency range and delivers sound from a single point source for maximum clarity.
Up to four MXP-1 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier.
Compact pendant form factor is perfect for open architecture or wood slat ceilings.
Available in black or white finish, paintable to match room décor.
Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom.
Shure Microflex®
MXP-1
Mini Pendant Passive Loudspeaker Resources:
Shure MXP-1 Datasheet:
View PDF
Model: VCM38
Frequency Range: ~120Hz – 20kHz
Interface: USB 2.0
Camera: 1/2.5” CMOS, 8.51MP
Specifications
Model code
MXP-1W
Model
VCM38
Frequency Range
~120Hz – 20kHz
Interface
USB 2.0
Camera
1/2.5” CMOS, 8.51MP
Video Quality
30fps, 4K
Protocol
UVC 1.0, UVC 1.5
Microphones
Built-in 3-microphone array
Voice Pickup Range
360°, Up to 40 square meters
Battary
1420mAh, Li-Po
Length
5 meters
Connectivity
Bluetooth 4.2, USB 2.0
Integrated PoE
Yes
MXP-1W
