8-inch IPS touch panel with 1280 × 800 multi-touch display, RJ45, endpoint Wi-Fi, IEEE 802.3af PoE and adjustable stand.
Specify CTP18 correctly for your project
This page is specifically for the Yealink CTP18 Touch Panel by Yealink, with ordering reference CTP18. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Scheduling & Control Panels range.
Information that helps us prepare an accurate quote
- Required quantity of model CTP18
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information

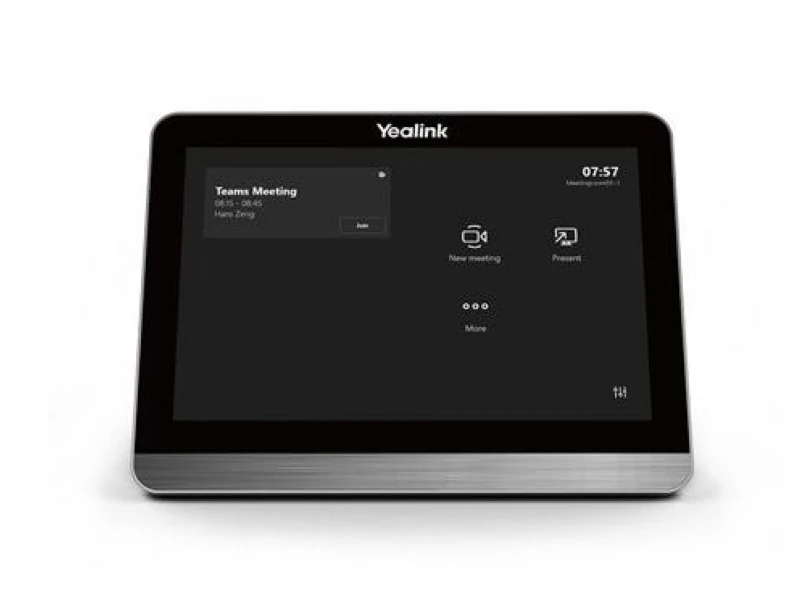

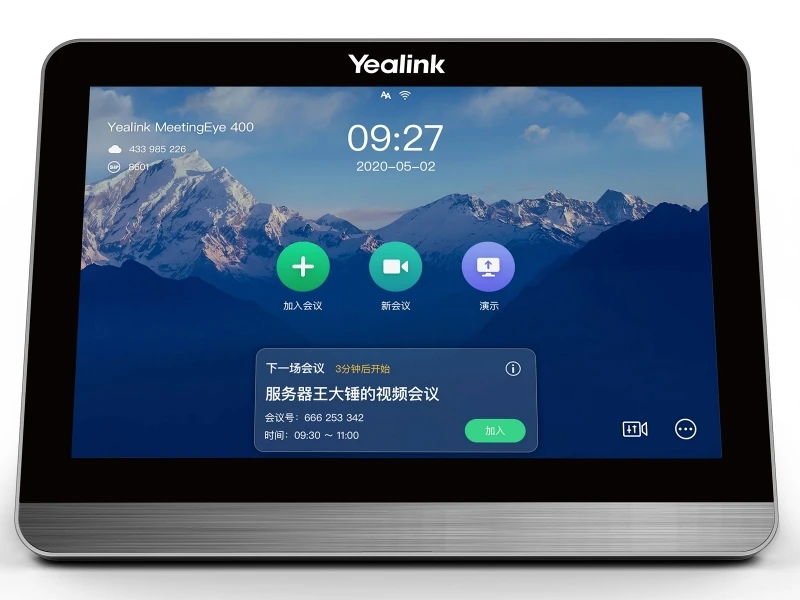

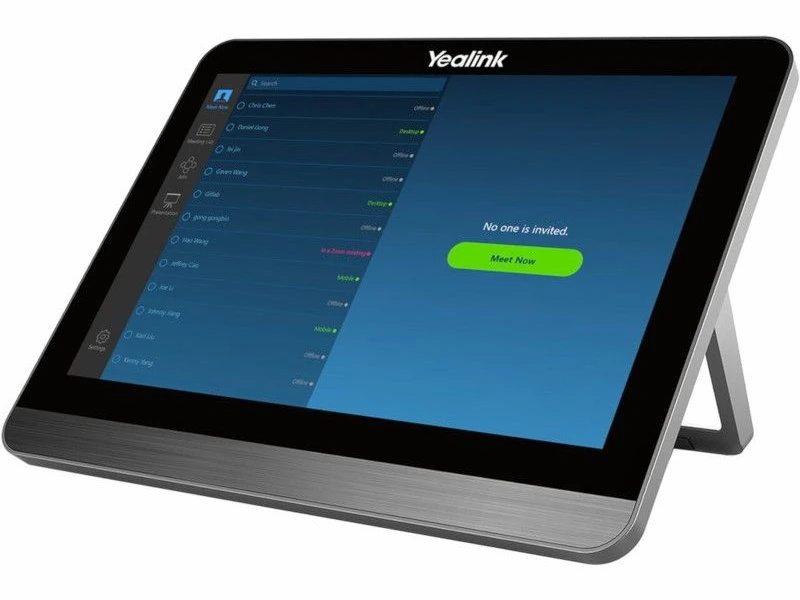

The Yealink CTP18 is an 8-inch collaboration touch panel that places meeting controls and shared-content interaction at the conference table. Its 1280 × 800 IPS capacitive display supports 10-point multi-touch, while the adjustable desktop stand provides a viewing angle from 28° to 50°.
One RJ45 port carries Ethernet data and IEEE 802.3af PoE power. The panel can communicate with a supported Yealink video conferencing endpoint over the same wired LAN or connect only to the Wi-Fi network generated by that endpoint, using 2.4 GHz or 5 GHz IEEE 802.11n/ac. A USB-C port is provided for device debugging/service. Maximum documented power consumption is 7 W, and the unit measures 202 × 151 × 100 mm.
Official Yealink documentation supports up to four CTP18 panels with MeetingEye 400/600 systems running version 44 or later. Later supported versions of VC880, VC800 and VC500 also allow up to four panels, while VC200 and VC210 support one. When used with Yealink wireless presentation, the panel can support shared-content annotation and reverse control where the endpoint and presentation device provide those functions.
Product type
Collaboration touch panel for compatible Yealink video conferencing systems
Display
8-inch IPS capacitive touchscreen, 1280 × 800, 16:10
Touch
10-point multi-touch
Stand angle
Adjustable from 28° to 50°
Network / power
1 × RJ45 Ethernet for data and power; IEEE 802.3af PoE
Wireless deployment
2.4/5 GHz IEEE 802.11n/ac; connects only to Wi-Fi generated by supported Yealink VCS endpoints
Service connection
1 × USB-C for device debugging/service
Power
PoE, 48 V / 0.27 A; maximum consumption 7 W
Supported endpoints
MeetingEye 400/600 (version 44+); supported later versions of VC880, VC800, VC500, VC200 and VC210
Panel quantity
Up to 4 with MeetingEye 400/600, VC880, VC800 and VC500; 1 with VC200/VC210, on documented supported versions
Dimensions
202 × 151 × 100 mm
