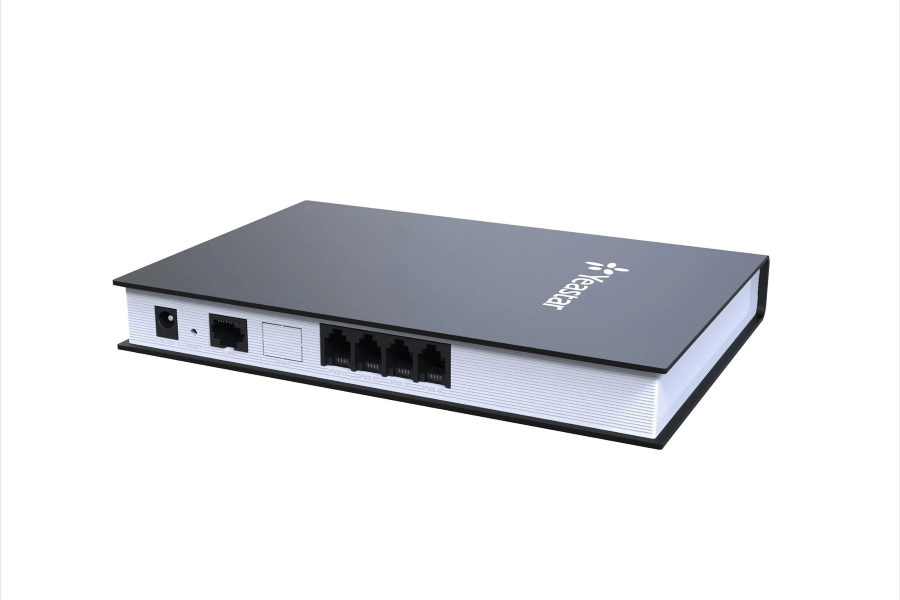

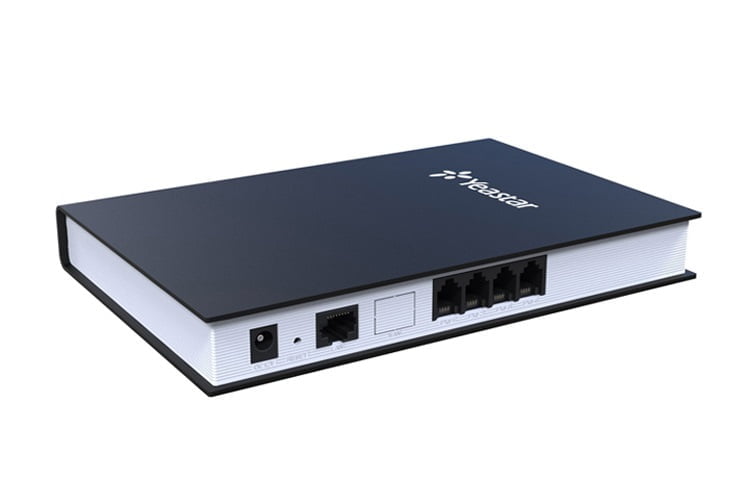

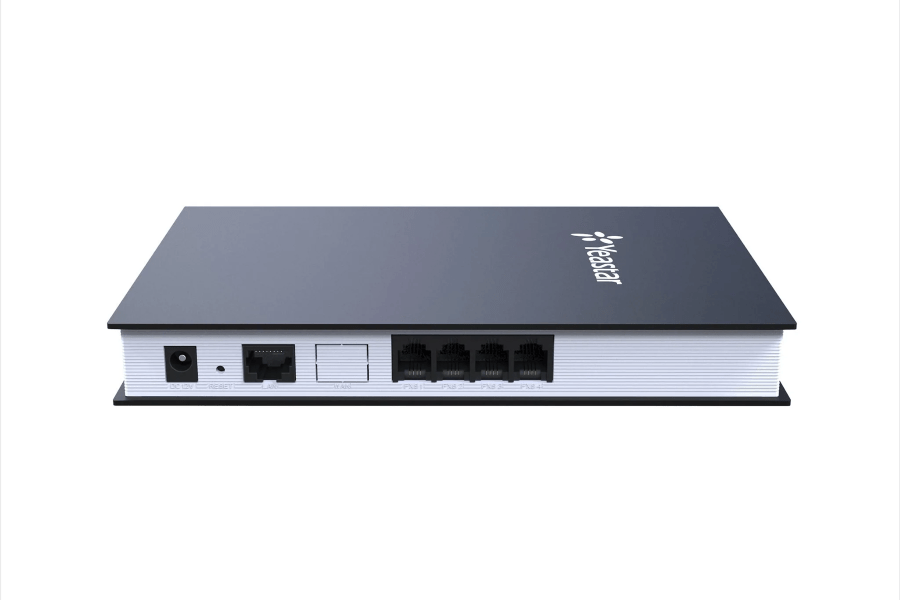

Yeastar TA400
is a multi-port FXS gateway including 4 FXS ports, line echo cancellation and is compatible with both SIP and IAX2.
Specify TA400 correctly for your project
This page is specifically for the Yeastar TA400 – FXS VoIP Gateway TA400, 4 FXS Ports, SIP & IAX2 Compliant by Yeastar, with ordering reference TA400. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the FXS Gateways range.
Information that helps us prepare an accurate quote
- Required quantity of model TA400
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information
Yeastar TA400 FXS VoIP Gateway Specifications:
Brand:
Yeastar
Model:
TA400
RJ11 FXS Ports:
4
RJ 21 Ports:
N/A
LAN:
1× 10/100Mbps
WAN:
N/A
Fax:
T.38 and Pass-through
Protocol:
SIP (RFC3261), IAX2
Transport:
UDP, TCP, TLS, SRTP
DTMF Mode:
RFC2833, SIP Info, In-band
Network Protocol:
FTP, TFTP, HTTP, HTTPS, SSH
Signaling:
FXS Loop Start, FXS Kewl Start
Power:
12V, 1A
Yeastar TA400 FXS VoIP Gateway Product Features:
4 FXS ports
Advanced and flexible calling rules
Reliable fax performance with T.38
High-quality voice compression with industry standard codecs
Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
Support various methods to light up the Message Waiting Indicator
Web-based GUI for easy configuration and management
Manage customer-premised gateway remotely and securely
Interoperable with a wide range of legacy and IP equipment
Fully compliant with SIP and IAX2, also features flexible calling rules.
Yeastar TA Series FXS VoIP Gateway Use Cases:
Analog Extensions for IP-PBX:
By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.
Connect Legacy PBX with SIP Trunkings:
TA series immediately connects legacy equipment to cost-saving SIP trunkings. You could also connect analog phones and fax machines to SIP trunkings with TA series.
Besides preserving investment on legacy equipment, enterprises could also utilize the benefit of VoIP easily and conveniently.
VoIP Enabling the Hotels with TA:
TA series connect existing analog guest phones to the VoIP network that delivers guest communications with crystal clear voice call, MWI (Message Waiting Indicator) support. For hotels that wish to keep the existing hotel phones, introducing TA FXS Gateway would be a cost-effective and trouble-free solution.
Yeastar TA400 FXS VoIP Gateway Resources:
Yeastar TASeries DataSheet:
Download PDF
