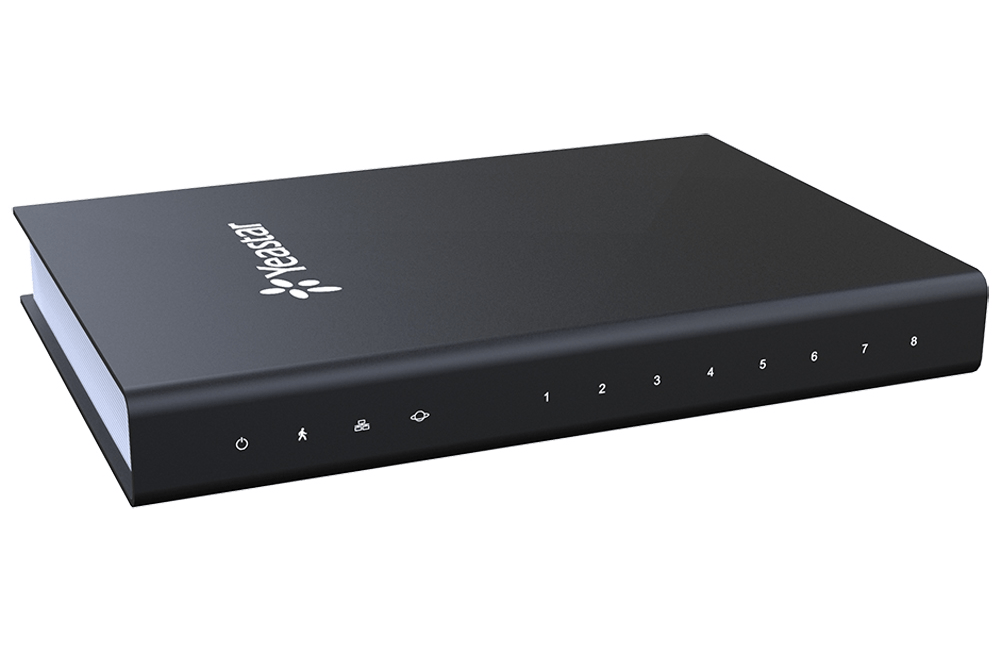

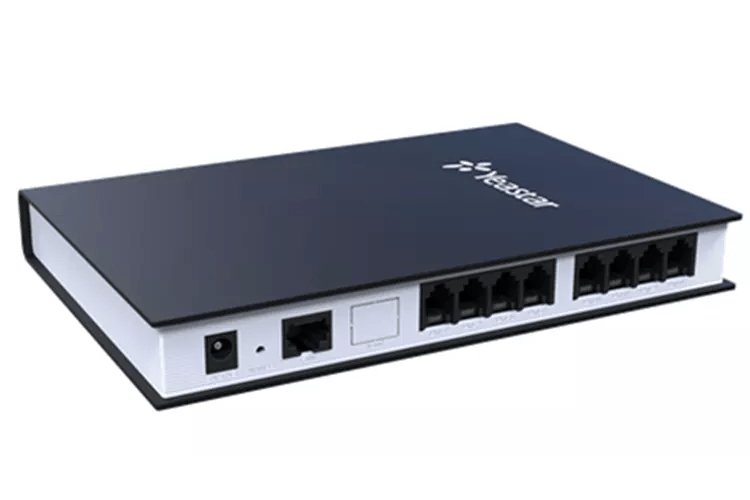

Yeastar TA810 FXO VoIP Gateway provides 8 ports to connect analog telephone lines or PABX extension interface to VoIP networks.
Specify TA810 correctly for your project
This page is specifically for the Yeastar TA810 NeoGate – FXO VoIP Gateway TA810, 8 FXO Ports, SIP & IAX2 Compliant by Yeastar, with ordering reference TA810. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the FXO Gateways range.
Information that helps us prepare an accurate quote
- Required quantity of model TA810
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information
Yeastar TA810 FXO VoIP Gateway Specifications:
Brand:
Yeastar
Model:
TA810
RJ11 FXO Ports:
8
RJ 21 Ports:
N/A
LAN:
1× 10/100Mbps
WAN:
N/A
Fax:
T.30
Protocol:
SIP (RFC3261), IAX2
Transport:
UDP, TCP, TLS, SRTP
DTMF Mode:
RFC2833, SIP Info, In-band
Network Protocol:
FTP, TFTP, HTTP, HTTPS, SSH
FXO Connectivity:
Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Power:
12V, 1A
Yeastar TA Series FXO VoIP Gateway Penefits:
Feature-rich:
A robust feature set that fulfills your various needs and cuts communication cost
Simple and Easy:
User-friendly Web GUI and intuitive operations. Comprehensive call log, system logs, hardware logs, and debug logs
High Performance:
Superb voice compression with industry standard codecs. Tested and certified with Elastix and compatible with other IP systems
Auto Provisioning:
Support PnP or DHCP provisioning by Yeastar PBX and standard open protocol TR-069
Yeastar TA Series FXO VoIP Gateway Use Cases:
Analog Extensions for IP-PBX:
By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.
PSTN Trunking for IP-PBX:
TA FXO Gateway provides an easy and trustworthy conjunction of IP-based system and traditional telephone line. It is suitable when the local IP telephony network is constructed gradually in an institution that already has a legacy telephony network. Any SIP-based VoIP infrastructure, including IP-PBX, hosted IP-PBX, VoIP call center could benefit from this conjunction.
Yeastar TA810 FXO VoIP Gateway Resources:
Yeastar TASeries DataSheet:
Download PDF
