Shure IntelliMix P300 – معالج صوت للمؤتمرات، 10 مداخل Dante، مدخلان تناظريان، 8 قنوات معالجة ميكروفون

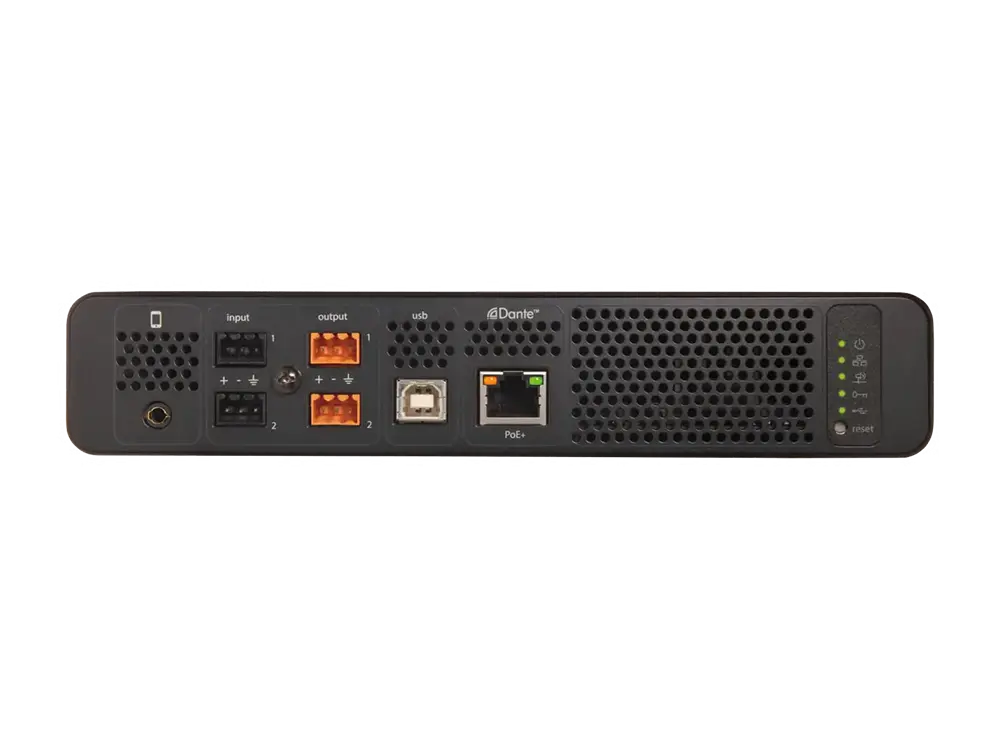

Shure IntelliMix P300 Audio Conferencing Processor Specifications: Manufacturer: Shure Model: IntelliMix P300 SKU: P300-IMX Input: 2× 3-pin block connector (Active Balanced) Output: 2× 3-pin block connector (Impedance Balanced) Mobile: 1× TRRS 3.5 mm (1/8") USB Connections: 1× USB 2.0, Type B Network Connections: 1× RJ45 (10 Dante Inputs , 8 Dante Outputs) Polarity: Non-inverting, any input to any output Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4 Power Consumption: 17.5 W, maximum Dimensions: 4 x 21 x 22.6 cm (1.6 x 8.3 x 8.9 in.) Control Software: Shure Designer Frequency Response: 20 to 20,000 Hz The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio. Shure IntelliMix P300 Audio Conferencing Processor Features: Connects 10 Dante audio inputs, 2 analog inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application. Includes Shure developed DSP algorithms to enhance audio quality in AV conferences: 8 channels of microphone processing featuring AEC, noise reduction, and automatic gain control, IntelliMix automatic mixing, matrix mixing, delay, compressor and PEQ. Flexible signal routing and connectivity: analog audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join. Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply. Compact form factor is easy to mount without equipment rack. Shure IntelliMix P300 Audio Conferencing Processor Resources: Shure IntelliMix P300 Brochure: View PDF Shure P300 Spec Sheet: View PDF
