Yealink MVC860-C5-713 – نظام Microsoft Teams Rooms، UVC86، MCore Kit-C5، ميكروفونا VCM35، MSpeaker II، WPP30، RCH40

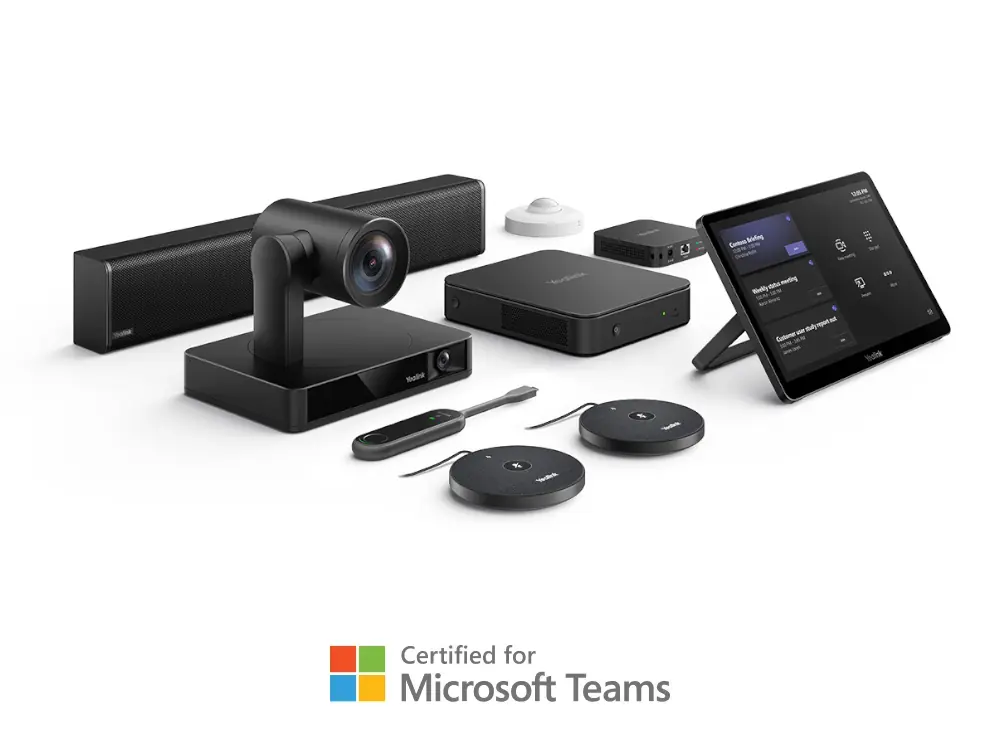

Yealink MVC860-C5-713 Microsoft Teams Rooms System Specifications: Manufacturer: Yealink Model: MVC860-C5-713 Part number: 1106988 UVC86 Camera 4K Dual Camera 20.4x Zoom (12x optical, 1.7× digital) Auto Framing Speaker Tracking Camera presets Pan range: 200° Tilt range: 130° MCore Pro Intel Core 11th i5 Processor 8GB RAM, 128Gb SSD 3× HDMI Out Support CEC Built-in EDID Support TPM 2.0 Built-in Security Slot MTouch Plus 11.6-inch IPS Screen Anti-fingerprint & Anti-glare 1920 × 1080 Resolution Multiple Panels to Control Third-party Screen Sharing Wireless BYOD 3 Deployment Methods RoomSensor Temp, Humidity, Light Detection Passive Infrared Technology Wireless Installation Bluetooth (BLE) 5.2 Actions with RoomPanel Management over Cloud Up to 5 Years Battery Life VCM35 Built-in three-microphone matrix 360° omnidirectional pickup Dynamic range: 81dBFS Sensitivity: -45dB±2 Frequency response: 100Hz-8KHz 2m full duplex range, 5m pickup radius Support star cascading MSpeaker II Stereo speakers Simple and easy deployment Frequency respond: 100Hz-20KHz RMS: 10W Built-in Bluetooth VCH (RJ45), supports PoE (802.3af) 3.5mm Line-in WPP30 Self-built Wi-Fi Network 4K/30fps Content Sharing Software/Hardware Encoding Dual-band 2.4GHz/5GHz Networks Full-featured USB-C and USB-A Ports AES & WPA Data Encryption 4-Screen Casting Support RCH40 Up to 90w PoE Budget  (30w per port) 4x 10/100/1000Mbps Ports 802.3af/at-compliant PoE Priority Control. QoS Disabled & EEE Support Multiple deploy methods Yealink EasyConnect The Yealink MVC860 is specially designed for medium and large conference rooms. Yealink MVC860-C5-713 includes new generation high-performance MINI-PC MCore Pro , touch panel MTouch Plus , and high-performance 4K PTZ camera UVC86 and RoomSensor , the kit also includes MSpeaker II , 2 VCM35 Microphones and RCH40 hub. The third generation MINI-PC MCore Pro combines aesthetics with practicality, supports a 5k 21: 9 display, has three HDMI ports, and comes with EDID, providing a flexible and reliable deployment solution for conference rooms. The 11.6-inch ultra-large and narrow frame touch panel MTouch Plus is the signature product of the third generation of Yealink. MTouch Plus innovatively supports multiple panels to control meetings at the same time, allowing multiple people to synchronize meeting operations and fully control the meeting process. Support for third-party screen sharing. Equipped with Yealink conference room sensor RoomSensor , realize stable wake-up experience and conference room environment detection. Yealink UVC86 intelligent PTZ camera supports multiple tracking functions, such as auto-frame, speaker tracking, and presenter tracking. The UVC86 camera supports 4k video output and has a 12x optical zoom lens to provide clear and lossless images. UVC86 provides you with a face-to-face, intelligent and smooth meeting experience by accurately recreating every moment and detail. You can choose to use wired ( VCM35 , VCM38 ) or wireless ( VCM36-W , CPW65 ) microphones for pickup, adaptive desktop placement, ceiling deployment and other diverse conference room deployment scenarios. Yealink MVC860 Teams Rooms System Key Features: Intelligent tracking, Free your hands Big and flexible conference control experience Flexible audio, Flexible connectivity Convenient screen sharing and fast BYOD solution Simple to deploy, Easy to use Manage your devices remotely Yealink MVC860 Microsoft Teams Rooms System Resources: Yealink MVC860 Datasheet: View PDF Yealink MVC860-C5-713 Deployment: View PDF
