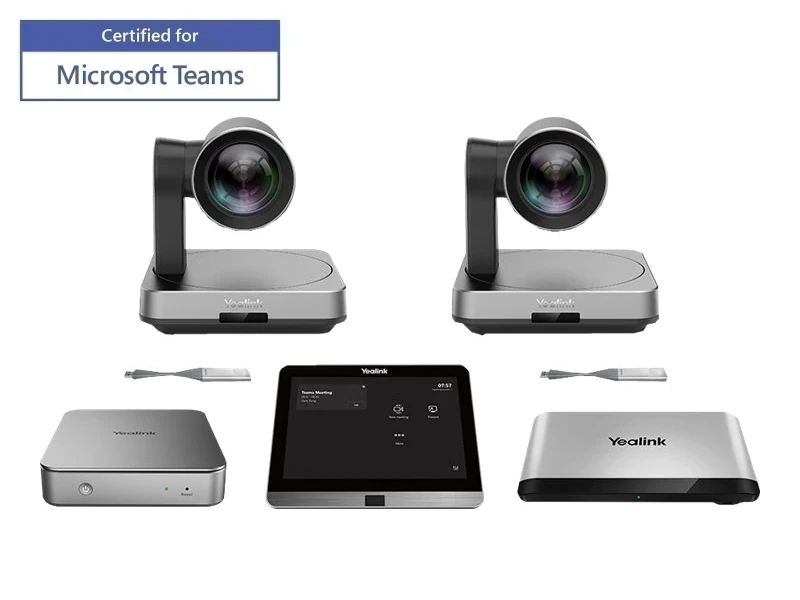

Yealink MVC940-C2-002 – نظام Microsoft Teams Rooms للقاعات الضخمة، كاميرتا UVC84، Camera-Hub، وحدتا WPP20، حاسوب MCore، MTouch II

Yealink MVC940-c2-002 Teams Rooms System Specifications: Manufacturer: Yealink Model: MVC940-c2-002 Part number: 1106941 UVC84 4K camera, 12x optical zoom Field of view (diagonal): 80° Auto Framing, Camera presets Pan: 200°, Tilt: 130° 1 x Line-out (3.5mm) 1 x Yealink Microphone port (RJ-45) 1 x USB 2.0 Type-B 1 x Power port 1 x Security lock slot 1 x Reset slot MCore 8th-gen Intel® QUAD-CORE i5 Memory: 8GB (2× 4GB) Storage: 128GB SSD 2× HDMI video output with CEC supported Bluetooth and Wi-Fi 4× USB3.0 Type-A 1× 10/100/1000M Ethernet port 1× Power port Security lock slot Built-in cable management MTouch II 8-inch IPS screen 1280 x 800 resolution 10-point capacitive touch screen 3.5mm headset jack Human Motion Sensor Angle adjustable bracket (28° ~ 50°) 1080P/30FPS FHD for sharing Support wired and wireless content sharing Built-in Wi-Fi AP HDMI/USB-C video input WPP20 1080P30fps Full HD Content Sharing Dual-band 2.4GHz/5GHz wireless networks USB 2.0 Type-A Up to four content streams simultaneously Supports annotations, whiteboards, and reverse control Plug and Play Camera-Hub Support up to 9 cameras Support camera layout 1 x RCA-in, 1 x RCA-out 1 x Yealink Microphone port (RJ-45) 1 x Ethernet port for camera connection 3 x USB 2.0 Type-A The Yealink MVC series are native and easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The Yealink MVC940-c2-002 provides a full-scene video conference solution to cover all of the meeting rooms from large to small. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, that fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Yealink MVC940 includes two UVC84 USB PTZ cameras with 12x optical zoom and it provides you with a multi-camera solution that supports camera layout adjustment to meet the requirements of extra-large meeting rooms. Yealink MVC940 Microsoft Teams Rooms System Key Features: Native Microsoft Teams-tailored user interface Smooth conference experience Multi-camera solution, support camera layout Content sharing in real time Simple to Deploy, Easy to Use Easily Manage Your Devices Remotely The Yealink MVC940-c2-002 Teams Rooms System Package Contents: 2x UVC84 12X optical USB PTZ 4K camera VCR20 remote control Power adapter Wall-mount bracket and cables Yealink MCore Kit (with MCore mini-PC and MTouch II) 1x UVC90 multi-camera hub power adapter and cables 2x WPP20 for wireless content sharing * The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in. Yealink MVC940 Teams Rooms Rooms System Resources: Yealink MVC940 Datasheet: Download PDF
