The
MeetingDisplay
is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution.
Specify MeetingDisplay 55 correctly for your project
This page is specifically for the Yealink MeetingDisplay 55 Display for Unified MTR System (MTR Display), 55″ 4K Screen, 2 Speakers, Android 13 by Yealink, with ordering reference MeetingDisplay 55. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Interactive Flat Panels range.
Information that helps us prepare an accurate quote
- Required quantity of model MeetingDisplay 55
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information

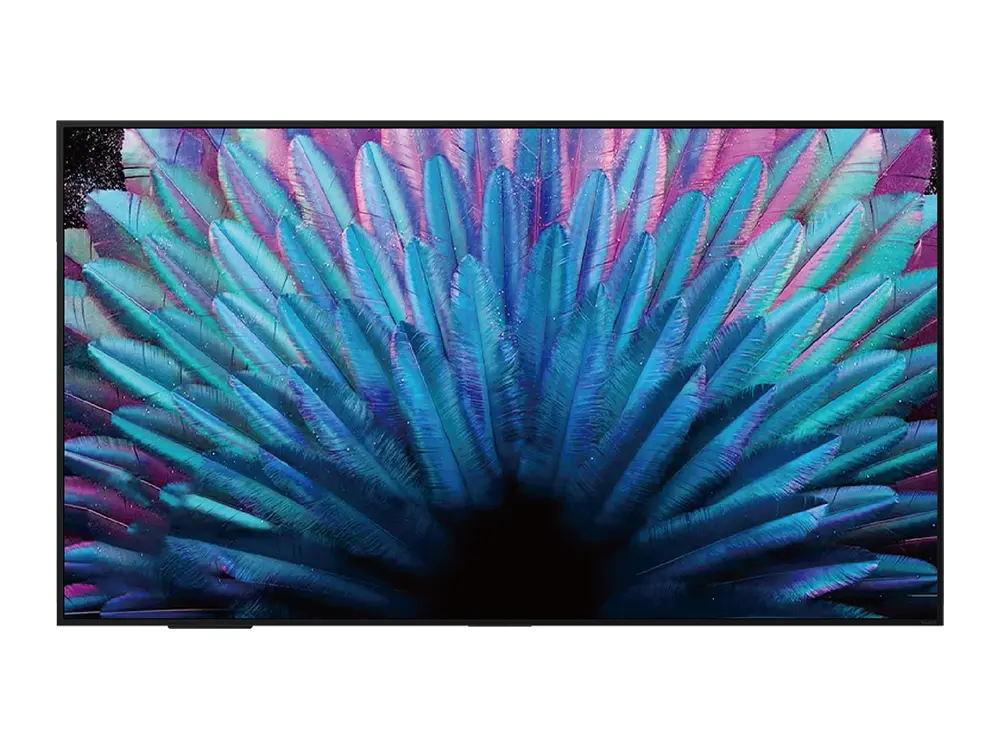

Yealink
MeetingDisplay 55
for Unified MTR System Specifications:
Manufacturer:
Yealink
Model:
MeetingDisplay 55
Display:
55-inch, 4K IPS
Brightness:
500 cd/㎡
Speaker:
12W x 2
Hardware Interfaces:
Video:
HDMI In 2.0 x 3
Audio:
3.5mm Stereo Mini Jack (Output)
USB:
USB- A 2.0 x 2, USB- B 2.0 x 1
LAN:
2x RJ45 10/100/1000M network ports
Control:
RS232 x 1, IP Control (Via LAN)
Others:
Reset x 1
Wireless Connectivity:
Wi-Fi 6, Bluetooth 5.1, IR
The
MeetingDisplay
is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. Yealink
MeetingDisplay

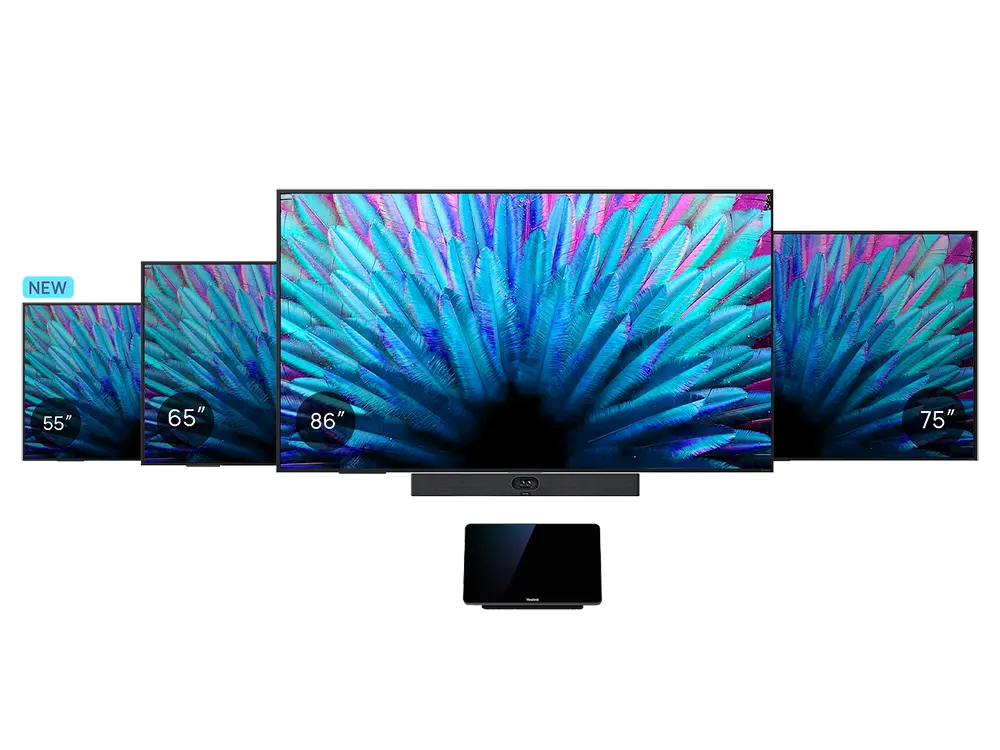

is available in 55", 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The
MeetingDisplay
and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the
MeetingDisplay
without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, you can manage the meeting solution, led by the
MTR
system via YMCS/YDMP. Finally, the solution allows
MeetingDisplay
and
MTR
devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.
Yealink
MeetingDisplay
for Unified MTR System Key Features:
Unified installation, the customised structure makes installation easy.
Unified coordination, supports digital signage, sleep, and wake-up functions.
Unified management, manage MeetingDisplay & MTR device on one platform (YMCS or YDMP).
Unified configuration, one-touch console is enough.
Yealink
MeetingDisplay
for MTR System Resources:
Yealink MeetingDisplay Datasheet:
View PDF
Model code
MeetingDisplay 55
Speakers
10W, Stereo Speakers
MeetingBar
A10 (4K Camera, 5W Speaker, 8 Mics)
Control
VCR11 Remote Control
Presentation Pod
WPP30 (4K, 4 Screen Casting)
Interface
HDMI video input, Mini-DP video input, USB 2.0 Type-A Port, USB 2.0 Type-B Port
Compatibility
MeetingBar A20 Teams, MeetingBar A30 Teams, VC210 Teams Video Collaboration Bar
Power Source
2 AAA Battaries
Camera
8MP, Dual, Sony Sensor
Microphones
Built-in 3-microphone array
Connectivity
Built-in 2.4G/5GHz Wi-Fi AP
Voice Pickup Range
20-foot (6-meter), 360°
