The
MeetingDisplay
is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution.
Specify MeetingDisplay 86 correctly for your project
This page is specifically for the Yealink MeetingDisplay 86 Display for Unified MTR System (MTR Display), 86″ 4K Screen, 2 Speakers, Android 13 by Yealink, with ordering reference MeetingDisplay 86. Include the complete reference in your RFQ to distinguish it from nearby sizes, colours, connections or editions in the Interactive Flat Panels range.
Information that helps us prepare an accurate quote
- Required quantity of model MeetingDisplay 86
- Project location and expected delivery date
- Installation, configuration or integration with an existing system
- Required accessories, licences, mounts or cabling
Detailed product information
Yealink
MeetingDisplay 86
for Unified MTR System Specifications:
Manufacturer:
Yealink
Model:
MeetingDisplay 86
Display:
86-inch, 4K IPS
Brightness:
500 cd/㎡
Speaker:
12W x 2
Hardware Interfaces:
Video:
HDMI In 2.0 x 3
Audio:
3.5mm Stereo Mini Jack (Output)
USB:
USB- A 2.0 x 2, USB- B 2.0 x 1
LAN:
2x RJ45 10/100/1000M network ports
Control:
RS232 x 1, IP Control (Via LAN)
Others:
Reset x 1
Wireless Connectivity:
Wi-Fi 6, Bluetooth 5.1, IR
The
MeetingDisplay
is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. Yealink
MeetingDisplay

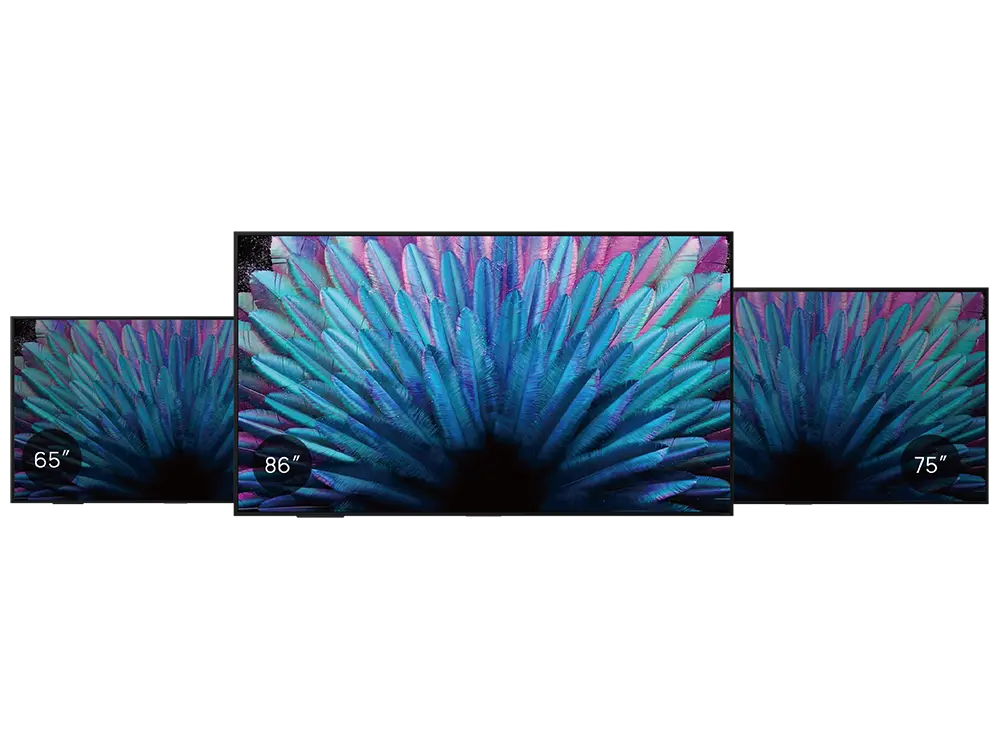

is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The
MeetingDisplay
and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the
MeetingDisplay
without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, you can manage the meeting solution, led by the
MTR
system via YMCS/YDMP. Finally, the solution allows
MeetingDisplay
and
MTR
devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.
Yealink
MeetingDisplay
for Unified MTR System Key Features:
Unified installation, the customised structure makes installation easy.
Unified coordination, supports digital signage, sleep, and wake-up functions.
Unified management, manage MeetingDisplay & MTR device on one platform (YMCS or YDMP).
Unified configuration, one-touch console is enough.
Yealink
MeetingDisplay
for MTR System Resources:
Yealink MeetingDisplay Datasheet:
View PDF
Model code
MeetingDisplay 86
MeetingBar
A10 (4K Camera, 5W Speaker, 8 Mics)
Control
VCR11 Remote Control
Presentation Pod
WPP30 (4K, 4 Screen Casting)
Interface
HDMI video input, RJ45 port, USB 2.0 Type C, USB 2.0 Type-A Port
Power Source
2 AAA Battaries
Compatibility
MeetingBar A20, MeetingBar A30, VC210 Video Collaboration Bar
Camera
1/2.5” CMOS, 8.51MP
Voice Pickup Range
360°, 6.5 feet (2 meters)
Connectivity
Bluetooth 4.2, USB 2.0
MB86-A001-White
