Crestron HD-MD4X1-4KZ-E مبدّل AV بدقة 4K60 4:4:4 HDR، 4 مداخل HDMI ومخرج HDMI واحد، HDR10 وHDR10+ وDolby Vision

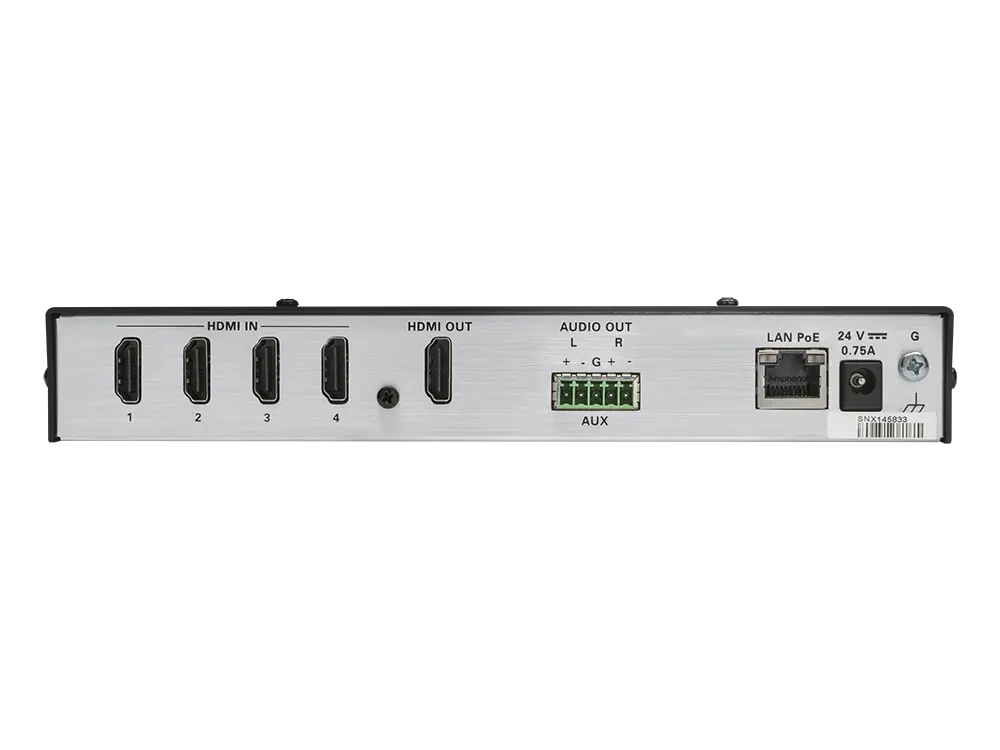

Crestron HD-MD4X1-4KZ-E 4x1 4K60 4:4:4 HDR AV Switcher Specifications: MANUFACTURER: Crestron MODEL: HD-MD4X1-4KZ-E REGULATORY MODEL: M201946001 HDMI IN 1-4: (4) HDMI digital video/audio inputs (DVI & Dual-Mode DisplayPort interface compatible) HDMI OUT: (1) HDMI digital video/audio output (DVI compatible) AUDIO OUT, AUX: (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output LAN PoE: (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE (Power over Ethernet) powered device (PD) port; IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) compliant, capable of being powered by PoE power sourcing equipment 24 VDC, 0.75 A: (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW-2407WU Power Pack (sold separately) SERVICE: (1) USB Type A female; For firmware loading and configuration management; Can also provide up to 5 V 500 mA power to USB powered device DIMENSIONS: 217 mm × 178 mm × 34 mm WEIGHT: 1.8 lb (0.82 kg) The HD-MD4X1-4KZ-E is a 4K60 4:4:4 HDR (High Dynamic Range) AV switcher that provides a cost-effective solution for professional AV applications. Equipped with four HDMI® inputs and one HDMI output, the HD-MD4X1-4KZ-E includes features such as automatic switching of inputs, EDID management, HDCP 2.3 compliance, enterprise-grade security, and XiO Cloud® service support. Crestron HD-MD4X1-4KZ-E HDMI AV Switcher Features: 4K60 4:4:4 digital AV switcher HDR10, HDR10+, and Dolby Vision® video formats. Four HDMI® inputs and one HDMI output. Automatic switching of inputs. EDID management. HDCP 2.3 compliance. HDMI audio de-embedding. Device control via CEC. Enterprise-grade security. Built-in web interface. Compatibility with Crestron® 3-Series® or later control systems. AV Framework™ technology support. XiO Cloud® service support. Compact surface-mountable design. PoE powered device (optional power pack sold separately). Crestron HD-MD4X1-4KZ-E 4x1 4K60 4:4:4 HDR AV Switcher Resources: Crestron HD-MD4X1-4KZ-E Spec Sheet: View PDF
