Crestron CEN-SWPOE-5AC محوّل شبكة بـ5 منافذ PoE، Gigabit Ethernet غير مُدار، يوفّر PoE وPoE+

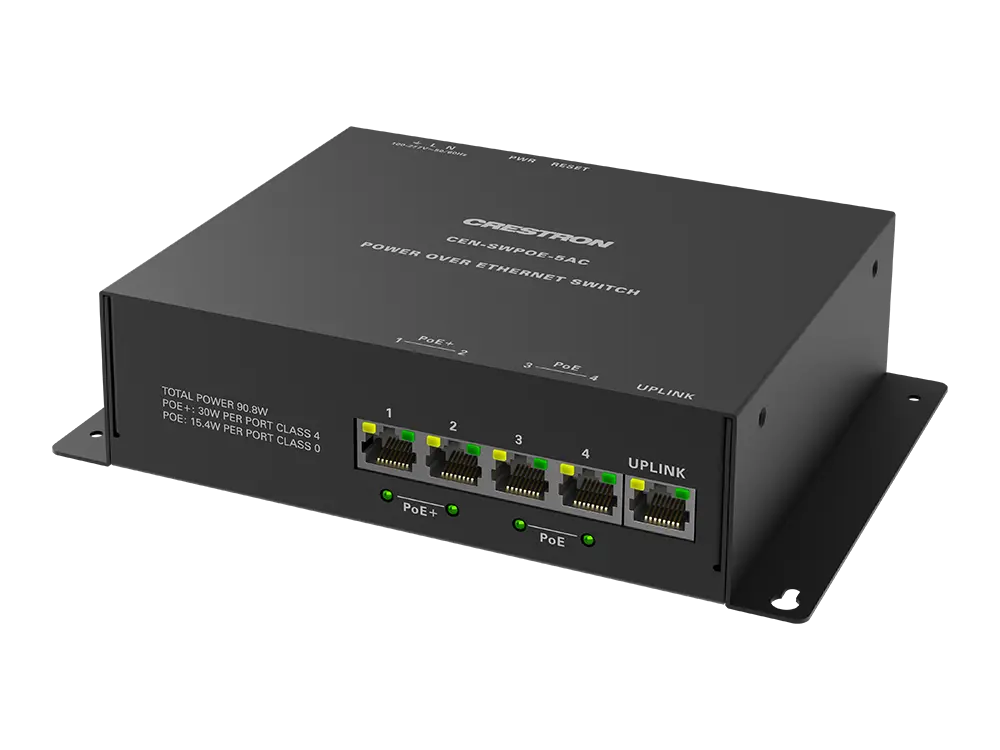

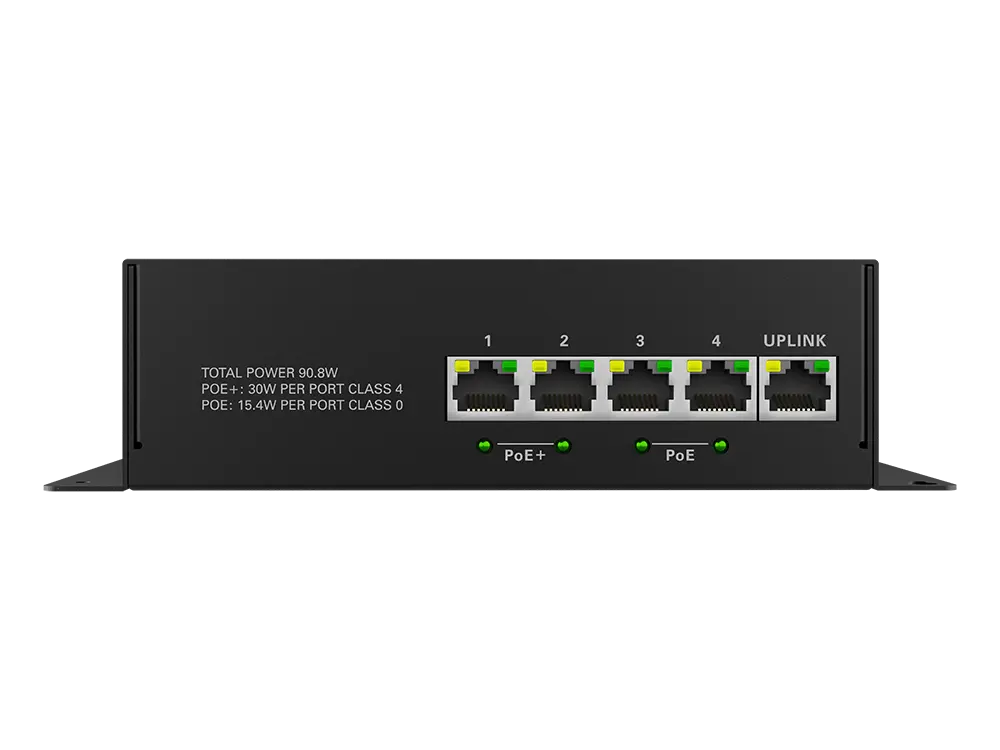

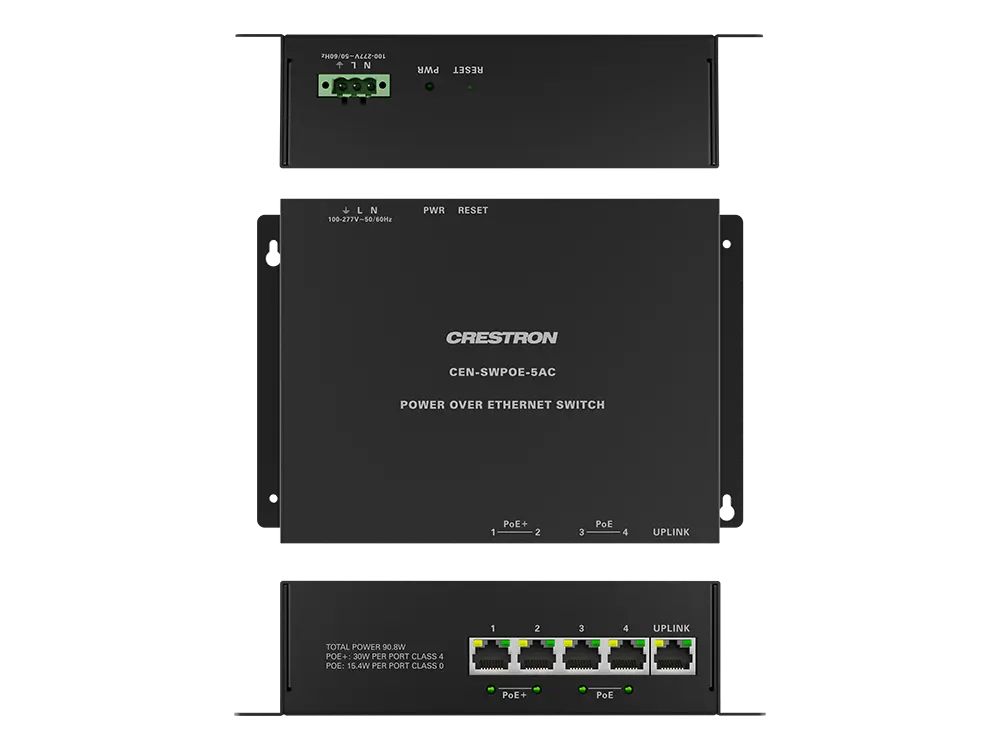

Crestron CEN-SWPOE-5AC 5-Port PoE Network Switch Specifications: Manufacturer: Crestron Model: CEN-SWPOE-5AC Regulatory Model: M202214001 Ports: (5) 100BASE-TX/1000BASE-T Transmission Method: Store-and-forward Ethernet Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, & 802.3af /at Connectors: Uplink: (1) 8-wire RJ-45, female; 100BASE-TX/1000BASE-T Ethernet port 1 – 2: (2) 8-wire RJ-45, female; 100BASE-TX/1000BASE-T Ethernet ports and PoE+ Power Sourcing Equipment (PSE) outputs; Ports 1 and 2: 30 W (max) 3 – 4: (2) 8-wire RJ-45, female; 100BASE-TX/1000BASE-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Ports 3 and 4: 15.4 W Chassis: Metal, black finish, with (2) integral mounting flanges Mounting: Freestanding, surface mount, ceiling wall box, DIN 49073, DIN Rail or attach to a single rack rail Input Range: 100-277VAC 50/60Hz Input Current: 2A @ 115VAC, 1A @ 277VAC max The CEN-SWPOE-5AC is a 5-port unmanaged Gigabit Ethernet switch that provides Power over Ethernet (PoE) from four of its ports. Power over Ethernet provides a one-wire solution for connecting Crestron touch screens, gateways, and other devices, delivering power and data over a single CAT5/6 network cable. Auto-negotiating and auto MDI/MDIX allows the ports to negotiate device connection types. All five ports are Gigabit capable to ensure maximum bandwidth for multimedia and critical control data. Using the CEN-SWPOE-5AC , there is no need to install a separate power supply at each networked device location. The CEN-SWPOE-5AC can simply be mounted at a convenient location on a wall or in an equipment rack, providing a single power source for four separate 802.3af/at (up to 30 W each port) compliant PoE powered devices. Non-PoE devices may also be connected to any port on the CEN-SWPOE-5AC without risk of damage to either component. Crestron CEN-SWPOE-5AC Unmanaged Ethernet switch Features: 5-port unmanaged Ethernet switch All ports support 1000BASE-T Gigabit Ethernet. Provides PoE and PoE+ (802.3af/at) on four ports. Auto-negotiating and auto MDI/MDIX. Rugged metal enclosure. Mounting options for flat surface or ceiling, junction box, and DIN rail applications. Supports lighting control for room-to-room communication. Crestron CEN-SWPOE-5AC 5-Port PoE Network Switch Resources: Crestron CEN-SWPOE-5AC Spec Sheet: View PDF
